CapeSoft TabTree
Documentation

Upgrading from SimTabTree? Take a look at this FAQ

• Introduction
• Features
• Jump Start (great for new users and beginners
• The TabTree Templates
• Examples
• TabTree Method and Property Reference
• Class Methods
• Class Properties
• Frequently Asked Questions
• Runtime Problems
• Feature Questions
• Upgrading Issues
• Support
• Installation and Distribution
• License and Copyright
• Version History

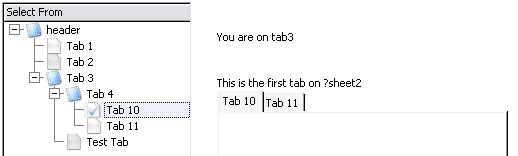

TabTree allows you to add a Sheet-Management control to a window. It creates a list of all the tabs in a list box. You can then navigate between tabs using either the keyboard or mouse and the list itself.

This approach is especially useful on windows where the sheet control contains many tabs, so many that the sheet control "overflows". It's also very useful on windows where you have Sheet Controls on another tab. By presenting the tab list as a tree, the layout of the window becomes a lot simpler.

• User friendly and modern looking tab selection.
• Handles nested Sheet controls (i.e. sheets on tabs).
• Allows you to set the Sheet as Wizard and/or NoSheet at runtime - thus making design easier.
• Tree selection matches tab selection (where tabs are programmatically selected).
• Multiple TabTree controls on each window.
• Automatically scans all the Sheet and Tab properties and builds the list appropriately.
• Supports Single EXE and Multi-DLL.

1. Open your application in the Clarion IDE.
2. Add the Activate CapeSoft TabTree Global Extension template to your application. To do this, Click on Global, then Extensions, then Insert, scroll down to the Class TabTree templates and double-click on the Activate CapeSoft TabTree template.
3. Now open the window containing a sheet that you want to replace with the TabTree list, and proceed to the window formatter.
4. Make some space in your window for the TabTree list box (usually on the left).
5. Place the TabTree control template on your window. To do this, from the Populate menu, select Control Template... and select the SimTree control template from the Class SimTabTreeControl items. You don't need to select a Queue in the From field - and if Clarion prompts you for one, simply click the cancel button.

If you are adding this to a MultiDLL application, then follow the steps in the Multi-DLL section of this document.

• Global Extension Template
• TabTree Control Template

The Global Extension Template

TabTree Control Template

In your Data-DLL:

• Add the TabTree Global Extension template
• On the Multi-DLL Tab turn on both options..

In your other applications (that require the use of TabTree in that application) including DLL's and EXE's:

• Add the TabTree Global Extension template
• On the Multi-DLL Tab turn on ONLY the first option.

Runtime Problems

• I have a contract box on my root - but it won't contract the list?

Feature Questions

• How do I change the icons?
• How do I Hand Code TabTree, do you support hand coding without templates?

Upgrading Issues

• How much does it cost to update to the latest version of TabTree from previous versions?
• How do I upgrade from SimTabTree to TabTree?

1.1) I have a contract box on my root - but it won't contract the list?

This is unfortunately a limitation of Clarion (as of writing - C6 9058). You will need to switch to using a root (see the template section) which will not have the contract box.

2.1) How do I change the icons?

In the Global extension you can choose which icons to use for the tree. At the local level you can override the icons for any one TabTree control.

2.2) How do I Hand Code TabTree, do you support hand coding without templates?

TabTree, like almost all of our products, is straight forward to hand code. We recommend using the template as a "quick start" for hand coding, as they generate the project and basic code for you:

• Create a new empty application. This can be ABC or Legacy.
• Add the TabTree global extension, and add a window with one or more Tab controls (you can import a window from an actual application, which can be helpful).
• Add the TabTree local extension.
• Generate the application

This provides you with the basic code that you need to use TabTree, and you can export the Project file from the application in order to see what needs to be added to your Project. This approach in very helpful for using any of the CapeSoft templates in a hand coded application, and allows you to use the templates and generator to build the basic code for you. The code can then be copied and pasted into your hand coded applications and modified as needed.

3.1) How much does it cost to update to the latest version of TabTree from previous versions?

It is CapeSoft's policy not to charge for updates for as long as we can, so typically you can upgrade to the latest release of TabTree from any previous version for free. Visit the CapeSoft web site at www.capesoft.com to get the latest version.

3.2) How do I upgrade from SimTabTree to TabTree?

You must only add the TabTree global extension to your application. The other settings will remain consistent from the SimTabTree local extension template.

Your questions, comments and suggestions are welcome. See our web page (www.capesoft.com) for new versions. You can also contact us in one of the following ways:

CapeSoft Support
Email
Telephone	+27 87 828 0123
Fax	+27 21 715 2535
Post	PO Box 511, Plumstead, 7801, Cape Town, South Africa

CapeSoft Sales
Web	www.capesoft.com
Email
Telephone	+27 87 828 0123
Fax	+27 21 715 2535
Post	PO Box 511, Plumstead, 7801, Cape Town, South Africa

Buy Online
Web	www.clarionshop.com

Run the supplied installation file.

TabTree is supplied as source and compiled into your application, you do not need to ship additional files.

Notes on getting started.

Start Here

There is an example in your \Clarion\3rdParty\Examples\TabTree\ directory. The examples are a great way to get started and see a few of the ways you can use CapeSoft TabTree.

This template is copyright © 2025 by CapeSoft Software. None of the included files may be distributed. Your programs which use TabTree can be distributed without any TabTree royalties.

Each developer needs his own license to use TabTree. (Need to buy more licenses?)

This product is provided as-is. CapeSoft Software and CapeSoft Electronics (collectively trading as CapeSoft), their employees and dealers explicitly accept no liability for any loss or damages which may occur from using this package. Use of this package constitutes agreement with this license. This package is used entirely at your own risk.

Use of this product implies your acceptance of this, along with the recognition of the copyright stated above. In no way will CapeSoft , their employees or affiliates be liable in any way for any damages or business losses you may incur as a direct or indirect result of using this product.

For the full EULA see https://capesoft.com/eula.html

Download latest version here

Version 2.22 (27 May 2025)

• Add: Clarion 12 to install.

Version 2.21 (25 May 2021)

• Add: Clarion 11.1 to install.

Version 2.20 (18 Sept 2018)

• Add: Clarion 11 to install.

Version 2.19(27 June 2016)

• Fix: In Clarion 10, in the Window Designer, the Sheet list (for Sheet Control setting) could be blank.

Version 2.18( 1 June 2015)

• Moved PrepareAlerts code.
• Moved bumpup test in SetSheetProps

Version 2.17( 25 February 2015)

• Clarion 10 install.

Version 2.16 (3 February 2014)

• Clarion 9.1 install.

Version 2.15 (13 September 2013)

• Add: Wizard and NoSheet properties for all primary Sheet controls can be set from Global extension.
• Add: Activate Auto Tab Trees Global Extension.
• Change: Default Header changed from "Select From" to blank.
• Change: Default "Make List Not Tree" changed from 0 to 1
• Change: Default for "Set Prop Wizard" changed from 0 to 1
• Change: When control template is populated onto a window, it populates to a default spot (it can be moved and resized after that.)
• Fix: If Column Header is completely blank (no empty quotes) then a compile error occurs.
• Update: Documentation updated.
• Add ControlWidth and ControlOffset properties to class.
• Add: Init, SetSheetProps, SetWindow and _BumpChildren methods to class.

Version 2.14 (1 May 2013)

• Build for Clarion 9
• Link attribute added to class, name attribute removed from the _Look method

Version 2.13 (14 March 2013)

• Changed to Ver4 object/template management system. IMPORTANT READ THIS.
• Add: support for Multi-Proj in C8

Version 2.12 (25 January 2013)

• Fix: Added Trace method to Export list.

Version 2.11 (23 January 2013)

• Add: Trace method to class
• Fix: Removed variable ds which was being declared in the CLW module.

Version 2.10 (28 June 2010)

• Move RebuildTabTreeQueue to PrepareAlerts (for both ABC and legacy).
• Global check in template to switch INIMgr return on or off.
• Remember tab turns KeepingTabs off (otherwise conflict).
• Class change - if Select pos is blank, then get the legal tab (rather than self.selected, which might not be legal anymore).

Version 2.09 (25 November 2008)

• Clarion 7 support for #pdefine (was not adding the project define automatically in Clarion 7).

Version 2.07 (10 November 2008)

• Clarion 7 compatible install.
• New methods: Next and Previous make programmatic navigation easier. Use the WrapAround parameter to generate a continuous Next/Previous.

Version 2.06 (11 July 2008)

• Template fix - regression in 2.04. Removed superfluous reference to removed template variables.

Version 2.05 (8 July 2008)

• Template fix - regression in 2.04. Removed superfluous reference to removed template variables.

Version 2.04 (17 June 2008)

• Fix for contract box in the root of the tree (requires a root for the tree in the control template prompts).
• Removed NoLines and NoBoxes superfluous tree options from the control template options.
• Improved FAQ documentation.

Version 2.03 (3 June 2008)

• Fix for legacy Multi-DLL applications. Compile error exporting the _Look function of the TabTree class.

Version 2.02 (28 May 2008)

• Fix for legacy applications - syntax error in the template.
• Legacy applications - stores the tab selected in an INI file.

Version 2.01 (26 May 2008)

• Include old SimTabTree icons in the install.

Version 2.00 (21 May 2008)

• Initial release
