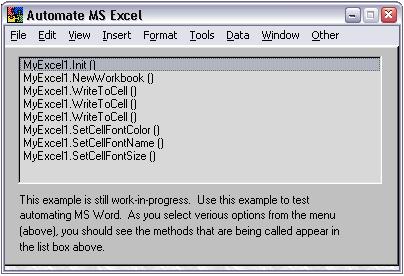

• Example Applications
• Considerations when upgrading from earlier versions of Office Inside

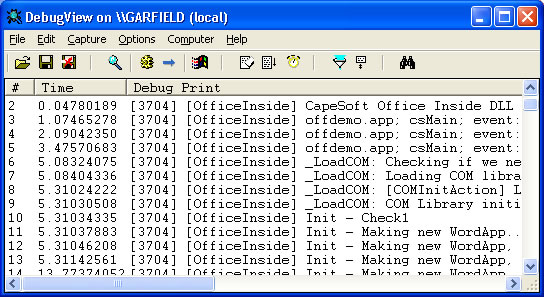

• Using DebugView
• Office Inside Coding Conventions
• Office Inside DLL version info
• Version History

Welcome to Office Inside! If you are new to Office Inside, or if you have not used the product for a while, these steps should get you going in the right direction.

Whether you are just starting off with this product, or are wanting to see what features the current version offers, or are wanting to find out how to do something with Office Inside, the best place to start is typically with the examples. The abc "Demo" app is the most comprehensive of the examples, and will show most of the features which Office Inside has to offer. A good place to start is to compile this example application and spend a few minutes having a look at what it can do ( we recommend doing this each time you install a new version of Office Inside also ). Once you have found what you're wanting to do, you can then have a look at the source code to see how we did it. This documentation explains the various objects, templates, and function calls which we use, but the example is easier to get your teeth into, and we'd suggest using this documentation more as a reference than as something which you read from start to finish. A common question is "Office Inside is so big, how do I find what I'm looking for?". To answer that question see the section titled Getting Started with Office Automation. It's best to have a specific task in mind and begin with that. You can then go specifically to either the Excel, Word, Outlook or PowerPoint docs to get jumpstarted into that task for the specific Office application that you are wanting to control.

Another useful habit to get into is to read the Product History each time you install a new version of Office Inside, which will list the changes / improvements / new features which have been added.

If you are still unsure about something after you've looked at the example applications, and read the documentation, feel free to contact us at for further assistance or to be pointed in the right direction. The Frequently Asked Questions is another useful reference to read through once in a while, and may give you some ideas as to what other Developers are asking about and using the product for.

Enjoy!

The simplest definition of automation in this sense is to control another, external program. A large part of what OfficeInside does is to make Automation of Microsoft Office products simpler, by taking care of the complexities inside the OfficeInside classes. When you use the Office Inside classes from your own application, all you need to do to start an instance of Microsoft Word (for instance) which you can then control from your application, is write one line of code (assuming you're not using the templates, which would do that for you), as follows: MyObject.Init(). Easy as that. The thousands of lines of code that are needed to actually get an instance of Word available to you and automate (control) that process are hidden from you inside the Office Inside classes.

The DLL consists in part of several objects, such as oiWord, oiExcel, oiOutlook, etc. Each of these objects contain methods which you can then call to make the Office Programs "do things". For instance, once you have started Microsoft Word, if you wish to write some text to the Word document, you would use the oiWord object's InsertText() method, as follows: MyObject.InsertText('I wrote this'). And again, the classes would then take care of getting that text into Word.

One of the big questions which we hear is "there are so many methods in Office Inside, how do I know what to look for?". The easiest way to get started is to compile the example application called "OffDemo.app". This example shows off most of what Office Inside is capable of doing, and contains "Automation Examples" for all the Microsoft Office programs which we currently support. Below is a picture of the Microsoft Excel automation example, showing the Clarion window called "Automate MS Excel", along with the instance of Microsoft Excel that the Clarion program started and is now automation ("controlling"). To make life easier for you, we have created a menu bar in each of the Clarion examples which matches the actual menu bar in the applicable Microsoft program. So if you want to know how to insert a picture into Word, you simply use the Clarion example application's "Automate MS Word" procedure, click on the "Insert" menu (in the Clarion example), and then click on "Insert Picture - From File". The actual method that is then called from code will appear in a list box on the Clarion window (as shown below for the Excel example), so that you can see exactly which method you need to use. You can then look up that method in the documentation to find out more about it, how it can be used, and what parameters etc can be used in it!





Now read (depending on which Office application you intend to use) either the Excel, Word, Outlook or PowerPoint docs to get jumpstarted on one of those.

This template is copyright © 2024 by CapeSoft Software. None of the included files may be distributed (with the exception of the pwutil.dll which you need to always ship with your application see What You Need To Ship for more information). Your programs which use "Office Inside" can be distributed without any "Office Inside" royalties.

Each developer needs his own license to use CapeSoft Office Inside. (Need to buy more licenses?)

This product is provided as-is. CapeSoft Software and CapeSoft Electronics (collectively trading as CapeSoft), their employees and dealers explicitly accept no liability for any loss or damages which may occur from using this package. Use of this package constitutes agreement with this license. This package is used entirely at your own risk.

Use of this product implies your acceptance of this, along with the recognition of the copyright stated above. In no way will CapeSoft , their employees or affiliates be liable in any way for any damages or business losses you may incur as a direct or indirect result of using this product.

From time to time there will be changes in Office Inside that may produce compile errors in your code, or require changes within you application.

Office Inside 2.40 - August 2007

• Important: If you are using the 'Import XLS To TPS' control template (now called 'Import and Excel File') then you must move your code for processing each record from the old ImportXLSFile_TakeRecord() method to the new TakeImportRecord() method. Also note that instead of each column being passed as a parameter the columns are now passed using a queue.

Office Inside 1.95 - 03 April 2006

• Important: If you have declared queues with the same structure as those in Office Inside for use with methods such as GetContactsQ then you will need to change the size of the strings in the queue. It is strongly recommended that you use the types defined by Office Inside. See the Demo application for examples. If your queue structures are incorrect you will get the compiler error: Syntax error: No matching prototype available.

• Take control of Microsoft Office from your app. No stability issues, no learning curve, no "funny" data types, no worries. At this time you can automate:
  • Microsoft Word
  • Microsoft Excel
  • Microsoft Outlook
  • Microsoft PowerPoint (work in progress)
• Examples, docs, and / or templates will enable you do add the following to your apps in under 5 minutes :
• Spell Checking
• Read / Write to the Address Book
• Add / Edit Tasks in MS Outlook
• Generate read-only, or fully editable Word and/or Excel documents from your existing Clarion reports, without having to add any extra code!
• Generate fully editable Excel spreadsheets from your existing Clarion data, with a couple of lines of code!
• Send email straight to your MS Outlook "Outbox"

NOTE: Have a look at the section titled "Version History" to see what we're working on and what progress we're making.

Your questions, comments and suggestions are welcome. Check our web page (www.capesoft.com) for new versions. You can also contact us in one of the following ways.

CapeSoft Support
Email
Telephone	+27 87 828 0123
Fax	+27 21 715 2535
Post	PO Box 511, Plumstead, 7801, Cape Town, South Africa

Office Inside can be purchased from:

CapeSoft Sales
Web	www.capesoft.com
Email
Telephone	+27 87 828 0123
Fax	+27 21 715 2535
Post	PO Box 511, Plumstead, 7801, Cape Town, South Africa

Buy Online
Web	www.clarionshop.com

To install "Office Inside", run the supplied installation file.  The install file will optionally register the template for you, and (for Clarion 6 users) update your redirection file to include various subdirectories within Clarion\3rdParty\.

In order for Office Inside to use the MS Office components, those components must be available. This means that if you want to use the templates that generate MS Word reports (for instance), MS Word must be installed on the PC. Office Inside supports all versions of Office from Office 2000 onwards (2003 and up is recommended). Office 2007, Office 2010 and future versions are fully supported. OfficeInside will continue to work with all future versions as long as the Office COM interface exists.

As of Office Inside version 4 and up, OfficeInside is now shipped as source code, and does not require OfficeInside DLLs shipped with your application, except for the pwutil.dll which is the com controlling DLL.

DLLs required (Standalone and Local mode compiles)
Clarion Version	DLL required
Clarion 6 through 8	PWUTIL.DLL

This table (Quick Reference) can be used to easily locate documentation on any of the Office Inside templates (listed below alphabetically).

Office Inside Templates : Quick Reference
Component	Template	Description
(all)	Activate_Office_Inside	Global extension for using Office Inside in your application.
Excel	Add_MSExcel_Object	Adds and configures an object in your procedure and allows the object type and settings to be chosen.
Excel	ImportXLStoTPSAbc	Template Utility to add an Excel Import Wizard to your application.
Outlook	Add_MSOutlook_Object	Adds and configures an object in your procedure and allows the object type and settings to be chosen.
Word	Add_MSWord_Object	Adds and configures an object in your procedure and allows the object type and settings to be chosen.
Word	OfficeInside Spell Checking Window Controls	Adds the Spell Checking controls to a window to provide feedback for spelling checking. We recommend using the provided template utility "ShowSpellingSuggestionsABC" or "ShowSpellingSuggestionsLegacy" to add the procedure to your application.
Word	OfficeInside Spell Checking	Adds and configures an object in your procedure and allows the object type and settings to be chosen.
Word	Office Inside Spell Check for C55 RTF	Control template. Adds a button to allow an RTF control to be spell checked in C55. This only applies to C55, in Clarion 6 and above the RTF control supports spell checking using the Word_Spellingchecking template without the need for this control template.

Below follows a list of all the Office Inside templates which are not "component-specific", meaning that they do not only apply to a single component of Office. Use the "Quick Reference" table (above) for a complete listing of all the Office Inside templates.

Template : Activate_Office_Inside
Summary	Global Extension Template Activate CapeSoft Office Inside Features in your application Required
What does it do?	You must add this template to your app or no other templates / objects will work. This template sets up the Office Inside classes (dll / lib) so that other templates can implement those classes.
How do I implement it?	1. Open your app 2. Select "Global Properties" from the "Application" menu 3. Click the "Extensions" button 4. Click the "Insert" button Select "Activate_Office_Inside" ( found under "Class OfficeInside" ) 5. Click the "Select" button ( you can leave all default settings, these are discussed below ) 6. Click "OK" 7. Click "OK" again If you are using Legacy and would like to use the Editable Report Word and Excel template you need to ticked on "Enable the use of ABC classes" checkbox under Global Settings on the Classes tab. Please also note that in Legacy you must have at least one of the SV report output templates added. This limitation will be removed in a future release.

The most frequently used classes are the oiWord, oiExcel, oiOutlook and oiPowerpoint classes, which are documented separately, see the Component Specific Documentation links in the Contents. This section documents additional classes that provide other functionality, as well as object that are generic to all of the application classes.

oiObject

oiRecentFiles

For data types and equates that relate to a specific Office Inside object please see the documentation on the Word, Excel, Outlook and PowerPoint classes.

Equates

The size equates below are used for the various fields and type declared in Office Inside. For example the data types used by the Outlook class for storing Appointments, Tasks, Contacts etc.

_oit:TinyStringSize           equate( 20 )                      ! Really small Office Inside String Size
_oit:SmallStringSize          equate( 50 )                      ! Small Office Inside String Size
_oit:MedStringSize            equate( 100 )                     ! Medium Office Inside String Size
_oit:StdStringSize            equate( 255 )                     ! Standard Office Inside String Size
_oit:LargeStringSize          equate( 1024 )                    ! Large Office Inside Sting size
_oit:TelNoStringSize          equate( 30 )                      ! String size for telephone / fax numbers
_oit:EntryIDSize equate(_oit:LargeStringSize)

General Tips & FAQs

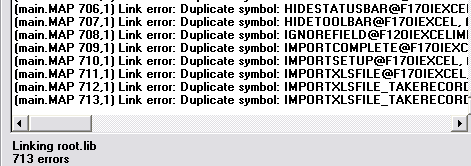

I'm getting Compile errors or Runtime Errors

For questions about upgrading to OfficeInside4: What's new in Office Inside 4:
If your procedures don't work after upgrading to OfficeInside4, make sure that you've completed the What must I change in my application after upgrading section of this doc.

You can download the ClarionLive training here

This section contains Tips and Frequently Asked Questions pertaining to the Office Inside product as a whole. Tips and FAQs pertaining to specific sections / components of Office Inside can be found as follows:

MS Word related FAQ's	( click here)
MS Excel related FAQ's	( click here )
MS Outlook related FAQ's	( click here )
MS PowerPoint related FAQ's	( click here )
Compile Errors	( click here )
Runtime Errors	( click here )
General FAQs	( click here )

• Issues with Office Inside and Zone Alarm.
  It has been reported that certain versions of Zone Alarm (including Zone Alarm Pro Ver. 4.5.530.000) seem to cause issues when using Office Inside. Apparently version 4.0.146.029 works fine.. (Thanks to Johan de Klerk for figuring this one out..)



• When UAC is enabled, my application has problems accessing Outlook.
  Ensure that your applications that will interact with Outlook have a valid manifest file for Vista/Windows 7. Without a valid manifest file, your application may require elevation in order to run, which will prevent Outlook from displaying security prompts to the user. In the event of a security prompt requiring user interaction, this will prevent your application from interacting with Outlook, and it may appears as if your application has locked up while waiting for a response from Outlook. It is strongly recommended that elevated applications do not interact with Outlook directly. The Microsoft design recommendations should be followed - separated the functionality that requires elevation into a seperate application, or seperate the components that interact with Office into applications that can be run without requiring privilege elevation.



• When I use a filedialog using the directory flag, I get a GPF (or the directory list does not display).
  This is an unfortunate side-effect of OI. We believe that this could be an interaction with the Clarion RTL when displaying the directory dialog. Unfortunately, at this stage the only work around is to use the directory flag without the longname flag which seems to circumvent this issue.
•

• When I use 2 OfficeInside extensions on the same window (for example SpellChecking and Email), I get a GPF.
  You have to kill the one before using the other. The Email component is used after the spell checking is done, so you need to set the Outlook extension to Initiate under “I will do it myself” and then just before you go into the send procedures, do the SpellCheckingObject.Kill() to kill the spell check and then after that do a OutlookObject.Init() and the rest.
•
  My Legacy application crashes after adding Office Inside.
• This is most likely because you are including the use of the Editable report templates. You can either exclude these on the global extension, or in the application global properties (Classes tab) check the "Enable the use of ABC classes" which will include ABC into your legacy application (thus making the use of the Editable reports possible).
•
  I get a GPF on init when opening the window with OfficeInside object added.
  If you added FileExplorer, then you must check the Activate Compatibility with File Explorer checkbox on the OfficeInside local template.



For this example, I've added a data source to the document to create a Mail merge, and then inserted 3 fields from the datasource (see Using Mail Merge for more info). The macro reveals the following VB script:



Let's take a look at the code, and break it down into one line at a time, because looking at it in a block can be a bit daunting. Let's take 2 lines as an example, and then we'll look into the others once you're familiar with the syntax.

ActiveDocument.MailMerge.MainDocumentType = wdFormLetters

This is the first line of the actual code, the lines prior to this are delimiters and comments which we can ignore.

This line is Setting the MainDocumentType property of the MailMerge subclass of the ActiveDocument class to wdFormLetters. The ActiveDocument, by implication, is a property of the Application. The reason we know that MailMerge is a subclass, is that there is a period after it referring to something else (in this case MainDocumentType). The reason we know that MainDocumentType is a property is that there is an = immediately after the property name.

ActiveDocument.MailMerge.Fields.Add Range:=Selection.Range, Name:= _
"First_Name"

As per above, we're still dealing with the MailMerge subclass of the ActiveDocument class, but in this case there is one level more. Because there is a period immediately after Fields, we can see that Fields is a subclass of the MailMerge subclass. This line is calling the Add method of the Fields subclass of the MailMerge subclass of the ActiveDocument class. The reason we know that it is a method and not a property, is because the method name is followed by a list of parameters, and not by an = sign. In this case there are 2 parameters: Range (Range:=) and Name (Name:=). The _ character is simply a linefeed indicating that the code continues on the next line. There is a Selection.Range handle passed in the Range parameter (more about that in the moment), and a constant of "First_Name" in the Name parameter. MSDN library (http://msdn.microsoft.com/library/default.aspx) is your friend when it comes to know the various properties and methods of each class.

Now the fun part comes when we convert this to Clarion code

1. If you have not done so already, add the OfficeInside global extension to your application.
2. In the extension templates of procedure from where you'll be controlling the sending of the mail merged document, add the "Add_MSWord_Object" template to the templates there, and set the Template Type to "Basic".

First lets get some terminology going. Each COM object that is exposed from any of the office classes, is available to us to be assigned to an oiObject. Once we've created the oiObject and assigned it to the COM object, we can assign properties, and call methods of that class from our Clarion Code. There are a number of oiObject pointers that are set at initialization which you can use without needing to retrieve these (see properties for details).

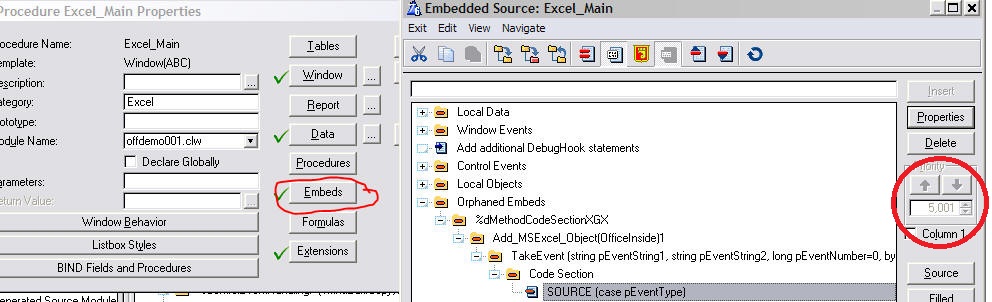

In the embed code, where you're wanting to run the code to perform the function we mimicked in the macro, we'll convert it as follows:

1. First up, let's convert the macro script to set the MainDocumentType property to Clarion:

   MyWord.GetObjects()   !Sets the internal existing oiObject pointers like ActiveDocument, Selection, etc.
   MyWord.ActiveDocument.GetChild('MailMerge',MyMailMerge) !MailMerge is a subclass of the ActiveDocument class, so we need to get the handle for that (and set it to the MyMailMerge oiObject that we will create in the data section).
   MyMailMerge.Set('MainDocumentType',wdFormLetters) !Setting the property

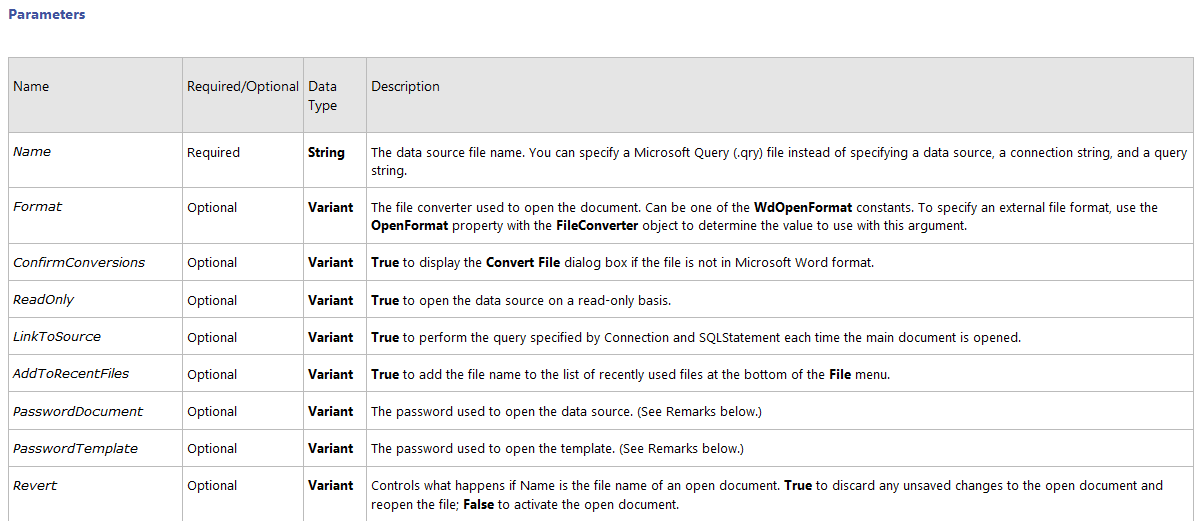

2. While this may look rather daunting to set a single property, we're most of the way there, since we have the handle for the Mailmerge subclass, so the rest gets easier. Line 2-8 of our macro code calls the OpenDataSource method. Now the trick comes into knowing each parameter type in order to know how to set it. We use MSDN library to determine the parameter variable types (in this case Word | MailMerge | OpenDataSource). Setting parameters must be done first, and in the correct order, before the method is called. Any trailing omitable parameters that you don't want to set can be ignored. If you need to set parameters 1 and 3, then you need to add a null parameter for 2 in order to set the 3rd parameter correctly. For the purpose of this exercise, we'll set all the parameters that are used in the macro. NOTE: The macro does not necessarily generate the parameters in the correct order, but you must get the order correct, which can be done using the class definition from the MSDN docs. Here's a snapshot of the method's parameters from the MSDN site:



   Here's the Clarion code:

   MyMailMerge.params.AddString('I:\Clarion8\Examples\OfficeInside4\Demo\data.csv') !The Name parameter, which is parameter 1 and required. We can leave the other parameters out as they are optional, but for documentation purposes I'll include a couple:
   MyMailMerge.params.AddInt(0)     !This is the value for wdOpenFormatAuto - to find other values, you'd search MSDN.
   MyMailMerge.params.AddBool(0)    !This is either true or false, so we use a Bool.
   if MyMailMerge.CallEx('OpenDataSource') = 0
     message('OpenDataSource Failed')
   else
     message('OpenDataSource Worked')
   end

   That handles the OpenDataSource method call in the macro script.
   Now we implement the method call to add the fields. First thing we need to do is get the handle to the Fields subclass of our MailMerge class:

   MyMailMerge.GetChild('Fields',MyMailMergeFields)

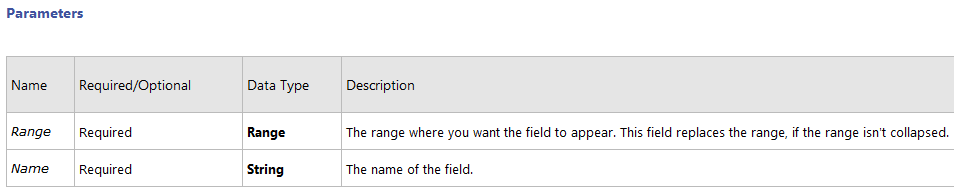

   Once we've got the handle to the Fields property, we need to investigate the parameters that will be used by the Add method of the MailMergeFields class:



   The Range data type is the handle to a com object. We don't have the handle yet, and our macro code gives us an idea of how to get this:

   Range:=Selection.Range

   The Range required is a subclass of the Selection class (once again, you could have found this out in the MSDN docs, but I'll give you the cheat sheet). We already have the handle to the Selection class (which we got in GetObjects just now), so now we need to just get the handle to the Range subclass of the selection class:

   MyWord1.Selection.GetChild('Range',MyRange) !We need to declare the MyRange in our datasection just now.

   Now we add the parameters and call the method:

   MyMailMergeFields.params.insert(MyRange) !We use insert when it's a handle to an oiObject (like Range).
   MyMailMergeFields.params.AddString('First_Name')
   if MyMailMergeFields.CallEx('Add') = 0
     message('Add Failed')
   else
     message('Add Worked')
   end

   We'll rinse and repeat to add the other datasource fields into the Word doc, and in the end our code looks like:

   MyWord1.GetObjects() !Sets the internal existing oiObject pointers like ActiveDocument.
   MyWord1.ActiveDocument.GetChild('MailMerge',MyMailMerge) !MailMerge is a subclass of the ActiveDocument class, so we need to get the handle for that (and set it to the MyMailMerge oiObject we created in the data section.
   MyMailMerge.Set('MainDocumentType',wdFormLetters)
   MyMailMerge.params.AddString('I:\Clarion8\Examples\OfficeInside4\Demo\data.csv')
   if MyMailMerge.CallEx('OpenDataSource') = 0
     message('OpenDataSource Failed')
   end
   MyWord1.SetSelection(10,11)
   MyMailMerge.GetChild('Fields',MyMailMergeFields)
   MyWord1.Selection.GetChild('Range',MyRange)
   MyMailMergeFields.params.insert(MyRange)
   MyMailMergeFields.params.AddString('First_Name')
   if MyMailMergeFields.CallEx('Add') = 0
     message('Add First_Name Failed')
   end
   MyMailMergeFields.params.insert(MyRange)
   MyMailMergeFields.params.AddString('Last_Name')
   if MyMailMergeFields.CallEx('Add') = 0
     message('Add Last_Name Failed')
   end

3. And finally, in our datasection, we need to create the oiObjects that we used to assign to the COM objects that we needed to get from MSWord.

   MyMailMerge oiObject
   MyRange oiObject
   wdFormLetters        equate(0) !Googling the MSDN site reveals that wdFormLetters is an equate of 0

Example 2: Scaling an Excel spreadsheet to fit on a page

This routine scales an Excel spreadsheet to fit on a page. We'll orientate it to landscape and then force to fit on a single page:

Macro code:

Sub Macro1()
'
' Macro1 Macro
'

'
  With ActiveSheet.PageSetup
     .PrintTitleRows = ""
     .PrintTitleColumns = ""
  End With
  ActiveSheet.PageSetup.PrintArea = ""
  With ActiveSheet.PageSetup
     .LeftHeader = ""
     .CenterHeader = ""
    .RightHeader = ""
    .LeftFooter = ""
    .CenterFooter = ""
    .RightFooter = ""
    .LeftMargin = Application.InchesToPoints(0.7)
    .RightMargin = Application.InchesToPoints(0.7)
    .TopMargin = Application.InchesToPoints(0.75)
    .BottomMargin = Application.InchesToPoints(0.75)
    .HeaderMargin = Application.InchesToPoints(0.3)
    .FooterMargin = Application.InchesToPoints(0.3)
    .PrintHeadings = False
    .PrintGridlines = False
    .PrintComments = xlPrintNoComments
    .PrintQuality = 600
    .CenterHorizontally = False
    .CenterVertically = False
    .Orientation = xlLandscape
    .Draft = False
    .PaperSize = xlPaperLetter
    .FirstPageNumber = xlAutomatic
    .Order = xlDownThenOver
    .BlackAndWhite = False
    .Zoom = False
    .FitToPagesWide = 1
    .FitToPagesTall = 0
    .PrintErrors = xlPrintErrorsDisplayed
    .OddAndEvenPagesHeaderFooter = False
    .DifferentFirstPageHeaderFooter = False
    .ScaleWithDocHeaderFooter = True
    .AlignMarginsHeaderFooter = True
    .EvenPage.LeftHeader.Text = ""
    .EvenPage.CenterHeader.Text = ""
    .EvenPage.RightHeader.Text = ""
    .EvenPage.LeftFooter.Text = ""
    .EvenPage.CenterFooter.Text = ""
    .EvenPage.RightFooter.Text = ""
    .FirstPage.LeftHeader.Text = ""
    .FirstPage.CenterHeader.Text = ""
    .FirstPage.RightHeader.Text = ""
    .FirstPage.LeftFooter.Text = ""
    .FirstPage.CenterFooter.Text = ""
    .FirstPage.RightFooter.Text = ""
  End With
End Sub

First some comments. The with statements are just setting up the object pointers in the macro so that the objects know which child object to use. Similarly, we'll get the ActiveSheet and PageSetup child classes. Then there are just a bunch of properties that we'll set. Most of them are just setting the defaults, which we can happily ignore, so I've highlighted the ones above that matter (see the MSDN docs for more details on the PageSetup object for the property details.

Clarion code:

ScaleToFit  ROUTINE
 DATA
iPageSetup       oiObject
iSheet           oiObject
xlLandscape      equate(2)
  CODE
MyExcel1.iApplication.GetChild('ActiveSheet',iSheet)
    iSheet.GetChild('PageSetup',iPageSetup)
    iPageSetup.Set('Orientation',xlLandscape)
    iPageSetup.SetBool('Zoom',oi:False)
    iPageSetup.Set('FitToPagesWide',1)
    iPageSetup.SetBool('FitToPagesTall',oi:False)

Prior to Office Inside 2.10 it was not possible to use File Explorer and Office Inside on the same thread (for example both extensions on a single Window). Office Inside 2.10 introduces a new option to the Office Inside Object extensions - "Activate compatibility with File Explorer". In order to use an Office Inside object on the same Window as a File Explorer object, make sure that this check box is checked on the local extension. Each Office Inside control must have this box checked if used on the same window as FileExplorer.

Do not check the box if you have not added FileExplorer to the same procedure, as Office Inside will then not initialise the COM interface, and it will simply not do anything when you call the methods unless you set the oiOffice.noComInit property of the object to zero and call the oiOffice.Init() method after setting this property back to zero.

If you are calling the Init() method manually the you need to set the oiOffice.noComInit property of the object to 1 before calling the Init() method.

Office Inside ships with several example applications, which demonstrate how to implement this product. These examples can be found in subfolders in your "Clarion\3rdParty\Examples\OfficeInside" folder. The examples are summarized below:

• Demo: The full OfficeInside demo application. This application is a great place to start and is updated with many of the latest and greatest Office Inside features. Although it uses the ABC template chain, the templates and embed code is identical for Legacy applications. This is a Clarion 5.5 app file.
• Editable Reports: Demonstrates the output to Word and Excel editable reports from Clarion reports. This feature allows any Clarion report to be output to a fully editable Word or Exceld document. Supported by Clarion 6 and later.
• FileExplorer: A simple example of using FileExplorer in conjunction with OfficeInside
• Multi-DLL: A simple Multi DLL project, aimed at showing how OfficeInside should be configured in multi DLL applications.
• RtfToHtml: Demonstrates how to convert RTF text to HTML using OfficeInside (The same techique can be used to convert HTML to RTF).
• Spell Check HTML: Demonstrates implementing spell checking in an HTML editor (uses FileExplorer).
• Word to MHT, EML: Uses word to convert any format that Word supports (Word, RTF, HTML etc.) to an MHT or EML (Web archive/Email), and then displays the resultant document using FileExplorer. This also effectively provides a document viewer within your application for any format that Word supports.

NOTE: You must complete the What must I change in my application after upgrading section of the doc. Don't forget to check the Compile errors section after upgrading to see what else you need to change in your application.

• Complete source code Except for the COM controller DLL (pwutil.dll - which is in C), Office Inside is now shipped completely as source code. This means you have direct access to all the classes, to derive and control in a very granular fashion. This gives you direct access to the COM classes, and thus get, set and run any COM property or method that exists in the Office classes.
• Improved Report Engine Improved algorithm for determining column output for reports to word and excel.
• Macro to Clarion code This is a Work In Progress, but our goal is to enable you to convert macros from Excel/Word to Clarion code with ease.
• Generic Objects implementation that give you the power to leverage functionality of the entire Office Object Model directly, thanks to the source code version.

NOTE: You must complete the What must I change in my application after upgrading section of the doc. Don't forget to check the Compile errors section after upgrading to see what you else need to change in your application.

Also included if you're upgrading from Office Inside 2:

• Multi Document support, allowing multiple documents to be handled and opened simultaneously, switched between, modified etc. using a single object (this is stil WIP in the first release)
• A new utility class and printing methods for listing all printers on the system and allows more control over the printout.
• Improved performance (report processing speed, document interaction, etc.)
• New Spell Checking objects and templates, for faster, more reliable and more powerful spell checking and full C7 support.
• New Excel Import and Export class. The oiExcelImpEx class allows you to import and export data between Excel and Clarion data structures such as queues, files, views and groups. It provides the ability to export or import data with a single method call:
  • excelX.Save(myFile, Longpath() & '\myfile')  ! Save as an Excel workbook, Excel will add the file extension
  • excelX.Load(myQueue, excelFileName)  ! ! Load the contents of the Excel file into the queue
• Query style access to Outlook data, allows database style access to Outlook data, synchronisation, location of specific items by their field values and more.
• Additional performance improvements across the board

What you need to change in your application:

The SetProperty method has been renamed to oiSetProperty.
The GetProperty method has been renamed to oiGetProperty.
If you are calling these directly in your code then you will need to tweak the call to the new name.

1. We have tried to keep this upgrade as backward compatible as we possibly can, but the underlying object generation template was about 10 years old, and needed to be re-aligned with the latest object generation template (that is used by the other CapeSoft products). As a result, if you have embedded source code into the object methods that are derived into your application, then these will be orphaned, and you will need to move these to the new embed points.

To view a video tutorial on how to do this: https://www.capesoft.com/docs/Office4/OfficeInsideMoveOldEmbeds.avi

Open the procedure that contains the Office Inside template where you've embedded into the derive procedures of an object, and go to the embed tree:



NB: Take note of the priority number (in the above example, this is 5001 as shown in the Priority control).

Cut the embed from there, and paste it into the relevant derived object procedure in the Local Objects | Capesoft Objects | <Office Inside Object name> | <Procedure> | CODE embed point. If the priority number is < 5000, then this should be before the parent call (to do this, highlight the CODE section and paste), alternatively, highlight the parent call and paste (which will paste after the parent call):



Similarly, if there is code in the orphaned method's data section, then you need to move that to the corresponding DATA branch of the tree as indicated above.

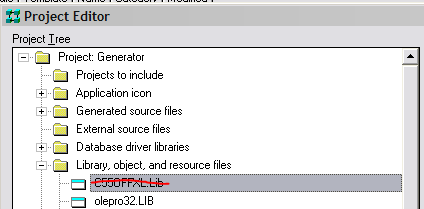

2. You need to remove the old office Inside dll from your project: (See Compile Error 2 for details)

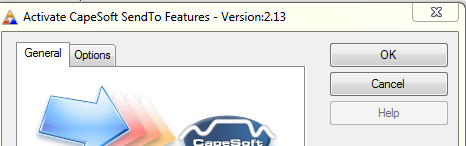

3. If you use SendTo in your application, then you must upgrade SendTo to the latest version.

4. If you have a include('msOffice.inc'), you must remove that (and the matching msOffice.clw fro your project). The  old "generics" class is now a part of the default OfficeInside classes.

5. If you're upgrading from Office Inside 2, you should import the Spell Checking window using the provided template utility. The new window uses the new control template that is part of the OfficeInside 4 spell checking solution.

6. Compile your application. If you are still getting compile errors, check the Compile Errors section of this doc.

Why is CapeSoft charging for an upgrade?

As much as we can we try to keep upgrades free. Charging an upgrade gives us the resources to pack in a whole lot of extra functionality into a product, that we would otherwise not be able to do. We are not forcing you to upgrade - and we will continue supporting and building Office Inside 3 in future versions of Clarion. If you would rather not pay for the additional functionality offered in Office Inside 4, you're welcome to continue using Office Inside 3.

Considerations if upgrading from very early versions of Office Inside

Although we try to ensure that Office Inside is always backward compatible, we may from time to time if we think it is going to improve the product long term, deliberately do something that would make Office Inside non backward compatible. In such cases we will document these changes in the Version History, as well as provide a summary here:

Version 1.91
A Checkbox has been added to the Global Extension that should be checked in order to use spell checking on a Clarion 6 RTF control. This has been added becuase in order to use spell checking on Clarion 6 RTF controls the RtfControlClass needs to have a line modified. Open the rtfctl.inc file in your Clarion6\libsrc directory and change the lines that reads:

CtlRTF SIGNED,PROTECTED

to:

CtlRTF SIGNED!,PROTECTED

The PROTECTED attribute needs to be commented out in order to allow Office Inside to identify which control the object is associated with.

Version 1.40 Beta
- Changed the Init method (all objects: Word, Excel, Outlook etc.). This method now only takes two parameters, as I've done away with the first parameter (EarlyBound)

DebugView by SysInternals (now Microsoft) is an application that lets you monitor debug output on your local system. We use DebugView when developing because it gives an accurate picture as to what's happening in your code (as opposed to Message() or Stop()). If you start your application (any application into which Office Inside is compiled) with the following command line parameters, debug output will be generated accordingly, which you can then monitor using DebugView.

MyApp.exe	same as MyApp.exe /oidebugoff
MyApp.exe /oidebugoff	almost no debug output
MyApp.exe /oidebugmin	minimum amount of debug output
MyApp.exe /oidebugmax	maximum amount of debug output

Tip

I'd recommend using debug output only when you're testing something. It can be quite annoying for other programmers to work on a system where there are a dozen different apps generating debug output at the same time! To make life easier, all Office Inside debug messages are prefixed with "[OfficeInside]", as shown below. You can set DebugView to ignore all messages that do not contain "[OfficeInside]". You will also take a very small performance hit when running an app with debugging turned on.

The following coding conventions have been used when building Office Inside:

• Anything prefixed with an underscore ( e.g. the _ConvertColorValue() method or the _oi:VersionCounter equate ) implies that it was built for "internal" use only, and is not intended to be used publicly (unless otherwise documented).
• Equates which pertain only to specific Office Inside components are prefixed as follows:
  • Microsoft Word - oiw:
  • Microsoft Excel - oix:
  • Microsoft Outlook - oio:
• Equates which do not pertain to a specific component ("global" equates) are prefixed with oi: (e.g. oi:REG_NONE)
• Refer to the documentation for each method to see how error handling is done. Some methods will return a 1 if the method did not encounter any errors, other methods (where a value needs to be returned) will return a negative number to indicate an error, e.g. oiExcel.CountOpenWorkbooks() which would return 2 if two open workbooks were found, or -1 if an error occurred.

The oi_Version function returns version information on Office Inside. See the documentation on this function for more info. The current version of pwutil.DLL that you should ship with your application is 2.5.0.0. Please ensure that you ship the latest version of pwutil.DLL.

Download latest version here
Upgrading from Office Inside 3? Make sure you work through What must I change in my application after upgrading


Version 4.75 - 27 May 2025

• Clarion 12 Install

Version 4.74 - 7 March 2024

• Fix: Excel: SetPaletteColor method supports Windows Color Equates.
• Fix: oiExcelImpEx.PrimeRecord method did not loop through colMap property.

Version 4.73 - 12 January 2024

• Tweak: External name added to Invoke methods in CSPWCOM.INC as the generated name may be too long. (based on this thread  https://clarionhub.com/t/compiler-hangs-in-debug-mode/6747/24)
• Internal: Update to Capexx.tpw version 4.30

Version 4.72 - 7 June 2023

• Renamed IID_ISequentialStream to cs_IID_ISequentialStream to avoid warnings in systems using EasyCom2Inc

Version 4.71 - 7 June 2023

• Improvements to the oiExcelImportWizard and oiExcelImport classes. You can now elect to only insert new records (not change existing) and only change existing records (not add new).
• 3 new properties of the oiExcelImport class: Request (when importing set to ChangeRecord or InsertRecord depending on whether the imported record exists or not), Errors (could not add/update the record), IgnoredRecords (did not insert/change the record).
• The new DeleteFileAfterImport allows automatic deletion of the excel file after completed import. (Set to 0 for no delete, 1 for always delete and 2 for only delete if no errors or ignored records).
• New Embeds around call to spell checker

Version 4.70 - 27 January 2022

• Fix: Build error in 4.69

Version 4.69 - 27 January 2022

• Fix: Some properties were being defaulted in the class declaration, and these defaults are not applied when classes are NEWed. These defaults moved to constructor methods.

Version 4.68 - 17 October 2021

• Add: Optional OpenPassword and EditPassword parameters to Excel SaveAs method.
• Add: SetFileType, SetPasswords methods.
• Updated some of the templates to make use of Clarion 11 wide template screens.

Version 4.67 - 8 June 2021

•


Version 4.66 - 24 May 2021

• Clarion 11.1 Install

Version 4.65 - 3 September 2020

• Fix: ImportExcelToTps wizard used fixed object name of MyExcel instead of name set by developer.

Version 4.64 - 25 July 2020

• Fix:  Break after one record if saving a Group
• Fix: When saving a VIEW the CurrentFieldNumber was not being set
• Fix: If Self.NumRows is not set (ie left as -1) then no limit on export is applied.

Version 4.63 - 13 May 2020

• Fix: Regression in 4.62 (in the SaveAs Excel and NewObject Baseclass methods) where OMITTED code was incorrect.
• Removed trace statement (for every debug statement even if debug mode was off).

Version 4.62 - 19 December 2019

• Refactor: Use of OMITTED in Excel class to cater for Legacy objects that generate boiler-plate empty methods.

Version 4.61 - 22 October 2019

• Change: More Equate names changed to avoid conflict with EasyCom.

Version 4.60 - 16 October 2019

• Change: Various Equate names changed to avoid conflict with EasyCom. If you encounter an error in your embed code add oi or pw to the front of the offending equate. For example IID_IPICTURE becomes pwIID_IPICTURE. Use of these equates in code is not expected though.

Version 4.59 - 15 October 2019

• Fix: Repeated calls to ReplaceText, on Different documents, would fail.

Version 4.58 - 13 September 2018

• Add: Clarion 11 to install.

Version 4.57 - 6 August 2018

• Add: Code Template, ImportXLS,  Calls to ExcelImport method return the result in an implicit result# .
• Add: oix:xlPDF as SaveAs equate for XLFileFormat.
• Add: SetWorksheetEnableSelection method to oiExcel class.
• Add: TakeSaveRecord, TakeLoadRecord, LoadCellsQueue, UpdateFileRecord methods to  poExcelImpEx class
• Removed: c55 property from oiExcelImpEx class

Version 4.56 - 8 March 2018

• Add: Excel Reports - when exporting a report to Excel can now specify Worksheet name (sheet will be created if necessary).
• Add: Excel Reports - can now export into an existing file.
• Change: Improvements to the WMF-to-Office algorithms.

Version 4.55 - 29 Jan 2018

• Add: trace method to _oiRepGen class

Version 4.54 Beta - 29 Jan 2018

• Extra embed points added to the init office and kill office methods.
• oiRepGen.Setup method fixed - was missing some controls when generating.
• _oiRepGen.AssignColumn - improved algorithm for assigning a field's column.
• _oiRepGen.AssignControlsToGrid - improved algorithm for assigning a header or footer band's controls to the closest detail control. Also improved mechanism for determining whether a control is in the header, footer or detail band.
• _oiExcelRepGen.WriteDataToCell - fix to generate normal background if a cell is empty (was generating a black cell).
• oiExcel._WrapperRange - fix GPF when using select without a range (now WrapperRange is correctly called using the select equate, instead of the value equate).
• New method: oiWord.MailMergePrint - method introduced for a mailmerge to printer.

Version 4.53 Beta - 5 Jul 2017

• oiWord - Added version of method SpellCheckRTFText which takes a Cstring.

Version 4.52 Beta - 20 June 2017

• oiWord - refactor of spell checking for RTF text. Now calls new method SpellCheckRTFText.

Version 4.51 Beta - 5 December 2016

• oiExcel - fix for ColumnNumber method (returning a column number from the Excel Column label). Was not returning column number > 27 correctly.

Version 4.50 Beta - 24 November 2016

• OiExcel - new method: WriteFormulaToCell
• oiOutlook - new method: GetMailRecipientsQ for extracting names and email address for a particular email.
• The template now uses a Project Define _OI45_ so that these methods can be used in our tools.

Version 4.38 Beta - 16 October 2016

• Renamed SetProperty method to oiSetProperty. renamed GetProperty method to oiGetProperty. Avoids clashes with H5 template.
• Change: IID renamed to cspw:IID.
• Change:  HKEY_* equates renamed to cspwHKEY*.

Version 4.37 Beta - 12 November 2015

• Added cs prefix to some API calls which clashed with SV API prototypes.
• Thread added to __VarientFactory

Version 4.36 Beta - 4 September 2015

• Fix for GetColumnWidth for columns > 'Z'.

Version 4.35 Beta - 21 July 2015

• Work-around for drag and drop (dragid no longer setting drag and drop ids on the same thread) in Clarion 9.1 (and up) in the Excel Import wizard.
• Excel Import wizard interface can be used to export to excel (coming soon).
• Support for using ABC classes in the insert and update methods (for importing from excel).

Version 4.34 Beta - 11 May 2015

• Normalized debug method across classes so derived methods had the same prototype as the base class.

Version 4.33 Beta - 25 March 2015

• Rebuild install.

Version 4.32 Beta - 11 March 2015

• Includes missing oiABPROIversionspecific.clw in Clarion 10
•


Version 4.31 Beta - 25 February 2015

• Installer supports Clarion 10
• Updated some use of %cwversion

UpVersion 4.30 Beta - 30 January 2015

• Fix: Compile error for missing property definition (regression in 4.29)

Version 4.29 Beta - 23 January 2015

• Fix: Possible "Index out of Range" in AssignConttrolsToGrid
• New method in oiOutLook : CreateContactGroup

Version 4.28 Beta - 15 April 2014

• Fix regression in 4.27 - calling function as procedure warning.

Version 4.27 Beta - 11 April 2014

• Rename POINT and RECT to csPOINT and csRECT declarations in the cspwapi files.
• Included the cspwapidef.inc file into the cspwcom.clw file (to allow declaration and export of the _vtstr function).
• SetCellFormat enhanced to support the Currency in Excel.
• oiExcelImpEx class defaults self.killWhenDone property to 0 (which means you can re-use the save and/or load in the same procedure). oiExcelImpEx.Kill method now behaves like the oiExcel Kill method. Close now does the clearing of the mappings, etc.
• DLL mode set in oiOfficeInside.inc for the classes that did not have this attribute set (msWord, oiExcelImpEx, oiExcelImportWizardScreenControls, oiExcelImportWizard)
• oiOutlook.UpdateAppointment - includes the Location field update.
• oiWord.SetSelection - If ColumnNumber is 0 and RowNumber is set, then selects the whole Row, and similarly if RowNumber is 0 and ColumnNumber is set, then selects the whole column.
• Template - removes old OfficeInside libs from the project.

Version 4.26 Beta - 10 February 2014

• Clarion 9.1 compatible install file.
• Removed some debugging output code
• New oiWord.RunMacro method makes it easy to a macro from code.
• Refactored the msOutlook class (moved some of the appointment handling code to the oiOutlook class).

Version 4.25 Beta - 30 October 2013

• Template fix: Exports the IReportGenerator derived methods (from the new IOutputGeneratorTarget parent interface).

Version 4.24 Beta - 17 October 2013

• Template fix: Word readonly reports outputs to non-editing mode.
• Import Wizard template fix: When table is selected, related table selection list is populated (for possible related table lookup selection).
• Template fix: Fix for RTFControl spell checking.

Version 4.23 Beta - 10 September 2013

• Word and Excel Target Generator classes - Report to Word and Excel now works correctly.
• Button on Office Inside template to import the Excel Wizard procedure (also re-arranged template prompts on extension templates)



Version 4.22 Beta - 16 August 2013

• Template fix for missing C9 target generator class method exports. Regression introduced in 4.15 for C9 (not able to export the class methods in the partial file).
• Include updated oiABPROIVersionSpecific.clw file for C6 install.
• Template fix in C9 for missing variable definition: %EAPOStartPowerPointVisible

Version 4.21 Beta - 9 August 2013

• Template fix in C9 for missing variable definition: %EAWOReportFileName
• C9 fix for duplicate variables (SC_xxxxxx)
• Move entire oiWordRepGen and oiExcelRepGen classes to different clw file (was not exporting the methods in the oiABPROIVersionSpecific.clw file). Regression introduced in 4.15 for C9 (not able to export the class methods in the partial file).
• Fix for missing %EAPOStartPowerPointVisible in new OfficeInside applications.

Version 4.20 Beta - 17 July 2013

• Work around for change in IReportGenerator interface in Clarion9 (includes more GetFileName method added to 10209).

Version 4.19 Beta - 1 July 2013

• FileExplorer compatibility improved (some apps generate duplicate function warnings).

Version 4.18 Beta - 26 June 2013

• Template tweak: Improved support for MultiProj in Clarion 8 (removed EOL character between defines).
• Class tweak:  Rename CURRENCY equate to cspwCURRENCY (in case of duplicate name).

Version 4.17 Beta - 12 June 2013

• oiExcel class: New selection oiObject in general objects (set in getobjects). GetSelection method sets the pointer to this object.
• oiExcel class: Fix for AutoFilter (not functioning correctly): AutoFilter params changed to omit-able pFromColumn (if omitted then all columns are filtered). If pToColumn is omitted, then self.CountUsedColumns() is used. AutoFilter now uses the self.selection object (instead of the old wrapperrange class).
• oiOutlook class: Fix for GPF in the sendemail routine (where only one email address is used, and a semi-colon proceeded the email address).

Version 4.16 Beta - 23 May 2013

• Update: Implement 4.02 of cape templates.
• Fix: Excel, Outlook and PowerPoint templates updated to respect local "do not generate code" switch.
• Template change: readclasses into template variable in the context of the Global OfficeInside template (c6 context mode gets switched sometimes).
• Template fix: exclude derived methods from being exported when oiABPROI classes are not exported.
• Include pwutil.lib and correct project defines in MultiProj project in C7 and up.
• Exclude Clarion 5.5 specific template code for declaring the classes.
• PrimeField template derived method uses field handle (rather than field name).
• Template derived method uses MethodID rather than method name check: PrimeRecord, Setup, InsertRecord, NewTableSelected, SaveSettings
• In oiExcelImportExport class: only inlcude the header row if the startrow> headerrow, strip the prefix from the field names in the wizard field headers, don't auto-adjust the width of the columns in the field list.
• Fix GPF in oiWord.ReplaceTextEx (oView pointer was not set, rather use self.view child object).

Version 4.15 Beta - 16 May 2013

• Template change - OfficeInsideStub.tpw file made non-version specific (now that Clarion5.5 is no longer supported).
• Work around for change in IReportGenerator interface in Clarion9. Additional file oiABPROIVersionSpecific.clw (different for C8 and below to C9 and up) shipped.

Version 4.14 Beta - 1 May 2013


Template

• Fix for Clarion 9 support.

Version 4.13 Beta - 17 April 2013

Upgrading from Office Inside 3? Make sure you work through What must I change in my application after upgrading

Template

• Changed to Ver4 object/template management system (this involved some significant changes to the templates around class generation and the way multi-dll systems are generated). IMPORTANT READ THIS.
• Add: support for Multi-Proj in C8
• Template Change - Moved #prepare outside the #sheet group in the global extension, moved Multi-DLL support group to it's own tab and new options tab.
• Template Change - include local disable here Template checkbox on Add_MSWord_Object did not disable OfficeInside completely on the procedure.
• Template Change - Excel filename for report uses the standard 'Quotes' or variable. Old template prompt was ported to the new name.
• Template Change (ExcelImportWizard) - hide TablesList if only one table (and pre-select that table).
• Template Change (SpellingSuggestions control template) - change to use %Window rather than window (for those changing the window declaration).
• cspwapi.inc class change - change OSVERSIONINFO and OSVERSIONINFOEX to prefixed with cs to avoid duplicate declaration warnings.
• oiExcelImpEx.Load change - New property IncludeHeaderRow - set to a particular excel row to include that particular row in the import (showing headers) - also fixed for TakeRecord to break on outofrange or cycle on Record:Filtered
• ExcelImportWizard class change - Allow double click on the field map to remove a mapping. Selecting on the fieldmap or the sample table list selects the corresponding field in the other list.
• oiObject.GetChild method - an additional generic method to get the particular instance of a child (in a matrix of child objects - like cell by row/column) and initialize it.
• oiWord.SetSelection method - allows focus on the header and/or footer and the ability to select a particular table (and cell) therein.
• oiWord.OpenHeader/CloseHeader/OpenFooter/CloseFooter methods - uses oiObject to open/close the header/footer
• oiWord.ReplaceTextEx method - All replaces text in the header, footer, and body
• oiWord.GetObjects method - returns if already called (using GetObjectsDone to determine this)

Version 4.12 Beta - 25 February 2013

Upgrading from Office Inside 3? Make sure you work through What must I change in my application after upgrading

General

• Word ReplaceText method - ReplaceAll includes replace for text in shapes (like textboxes).
• Excel ImportWizard class - Property: FieldListControlDefaultWidth, FieldListControlCollapsedWidth, LastFrozenFieldListColumn; New Method: RemoveColumnMap. Allows you to collapse columns, unmap all, unmap right to enable easier mapping for large imports.
• Excel ImportWizard class - Work around if Excel fails to initialize (at first), and if all Excel example spreadsheet list column widths are set to 0, then reset (according to whether the column should be visible or not).

Version 4.11 Beta - 20 February 2013

Upgrading from Office Inside 3? Make sure you work through What must I change in my application after upgrading

General

• Template - set copyright to 2013
• Template change - export to report template uses %report (not report) in case report is changed to a different name.
• cspwcom.inc change - FONTNAME changed to cspwFONTNAME (avoid duplicates in case of other COM tools).
• oiExcelImpEx class - .Next method (instead of next()) - allows overriding of the next() call (to use for example access:filename.next.
• oiExcelImpEx class - ValidateRecord allows client side filtering during the load/save methods.
• oiExcelImpEx class - .Set method (instead of set(file)) - allows the default primary key to be used, or a key can be specific in the derived method.
• oiExcelImportWizard class - popup on field map allows all fields to be unmapped (or to the right of this column).
• Type attribute added to the oiFieldMapQ definition.
• Examples tidied up.

Version 4.10 Beta - 31 January 2013

Upgrading from Office Inside 3? Make sure you work through What must I change in my application after upgrading

General

• Resolved more duplicates (with other 3rdparty COM tools) - iDispatch,Variant_True, Variant_False and Variant_Bool
• Multi-Proj support: Removed compile limitation around GET method calls (since Clarion 6.1 and below is no longer supported)

Version 4.09 Beta - 16 January 2013

Upgrading from Office Inside 3? Make sure you work through What must I change in my application after upgrading

General

• Uses office01.tpw (regression in 4.08 when attempting to use cape01.tpw)
• Template change - attempt to fix problem where #system is intimitently not running the %ReadClasses section. Run at the local level (as a backstop).
• ImportWizard template - allow import into table, and support update (where re-import is required).
• ImportWizard template - support relational lookup on many:1 tables. Excel spreadsheet can contain the description, which can be added or lookedup for the related ID field population into the imported field
• ImportWizard template - can highlight required fields (which can't be removed from the import). Does not permit import to continue if required fields are not mapped
• ImportXlsToTpsABC utility template selects the correct txa dependant on whether it's a C8 or C6 import.
• ImpEx class fix - if column is not mapped, then don't assignfield - leave blank.
• ImpEx class change - new method PrimeField allows a field's value to be altered in derived code (like for a lookup).

Version 4.08 Beta - 9 January 2013

Upgrading from Office Inside 3? Make sure you work through What must I change in my application after upgrading

General

• Fix compile errors associated with duplicate equate definitions (HORZSIZE, VERTSIZE, LOGPIXELSX, memcpy, etc)
• Fix compile errors associated with clashing interface names (with other COM classes) : IUnknown, ISequentialStream
• oiExcelImpEx - call parent destruct (was only calling kill, resulting in a GPF on the second instance of a window in the same thread).
• New classes - oiExcelImportWizardScreenControls to handle new OI wizard control template (oiExcelImportWizard class requires this class to be used). Excel import wizard now has saved import formats, displays a sample of the Excel spreadsheet to be imported and a previewer for the table to receive the imported data, supports dragging and dropping between these two lists for easy column selection.
• oiExcelImportWizard class uses oiExcelImportWizardScreenControls for all the control handles (a work around to allow the class properties to be screen controls).
• oiExcelImportWizard TakeEvent handles ExcelfileName lookup control, TableListControl selection. New methods: SaveSettings, RestoreSettings, GetMappedStrings, AddTable, RestoreFieldMapQ. oiTablesList expanded to include TableDescription, TableName, FileManager pointer and record buffer pointer.
• New method ReplaceTextEx - additional parameters to allow for options: pMatchCase pMatchWholeWord.
• ReplaceText fix - now uses oiObjects. Was not during recurssive replaces correctly.
• oiOutlook UpdateTask - fix to allow for body text of a task > 255 characters.
• Template forces the pwutil.dll copy (for multi-proj multi-dll apps where OI is not added to the EXE app).
• MProj fix - includes the pwutil.lib into the project (if required).
• Add IReportGenerator methods required by oiWordRepGen (to the export file)
• New control template for the ImportFromExcelWizard controls.

Version 4.07 Beta - 19 December 2012

Upgrading from Office Inside 3? Make sure you work through What must I change in my application after upgrading

General

• Fix compile errors associated with other 3rdparty tools using the same API calls  (FORMATETC, etc)
• Add linkmode switch to classes (also _oilinkmode_ to the project defines)
• Add interface procedures to the procedure export from the data dll.

Version 4.06 Beta - 6 December 2012

Upgrading from Office Inside 3? Make sure you work through What must I change in my application after upgrading

General

• Fix compile errors associated with other 3rdparty tools using the same API calls  (InitializeCriticalSection, etc)
• GetObjects method (in the oiExcel class)
• Merge msExcel destruct with the oiExcel destruct methods (msExcel class will be deprecated).
• Export methods from the oiABPROI file (multi-dll), as well as procedures from the oiObject.clw file.

Version 4.05 Beta - 28 November 2012

Upgrading from Office Inside 3? Make sure you work through What must I change in my application after upgrading

General

• Fix compile error oi_GetWorkAreaWidth() (in some cases where this function was used) in multi-dll applications.
• Redefined conflicting COM object declarations (where COM classes were also defined by ADO COM or another 3rdParty COM class).

Version 4.04 Beta - 16 November 2012

Upgrading from Office Inside 3? Make sure you work through What must I change in my application after upgrading

General

• Renamed internal Office API equates (to allow for the co-existence of another COM office tool, like EasyExcel).
• New Properties in the oiExcelImpEx class: RowsDone and ColsDone
• Fix for "Function did not return value" in oiWord.clw
• Beginnings of the oiExcelImportWizard class
• Includes a reformatted offdemo.app (internal issues with module numbering)

Version 4.03 Beta - 16 November 2012

Upgrading from Office Inside 3? You need to download and install the latest SendTo v2.13 (which includes OI4 tweaks)

General

• Simplified MailMerge implementation with MailMergeInsertField and MailMergeEmail methods.
• Simplified Excel data import/export options with the template settings.
• Renamed FONTITALIC internal equate (clash with other 3rdparty tools).

Version 4.02 Beta - 16 November 2012

Upgrading from Office Inside 3? You need to download and install the latest SendTo v2.13 (which includes OI4 tweaks)

General

• Redistributed modules in the offdemo (duplicate name).
• Fix for Word Reports (was not getting the correct number of columns in a table).

Version 4.01 Beta - 16 November 2012

You need to download and install the latest SendTo v2.13 (which includes OI4 tweaks)

General

• Fixes of 4.00

Version 4.00 Beta - 15 November 2012

You need to download and install the latest SendTo v2.13 (which includes OI4 tweaks)

General

• OfficeInside nows ships as source. Only pwutil.dll needs to be shipped with your applications, regardless of whether they are compiled in local (Lib) mode or Standalone (DLL) mode.
• The classes in msOffice.inc and msOffice.clw included with the "Generics" examples has been merged into the main OfficeInside classes.
• Improved

Version 3.76 Gold - 08 March 2012

General

• Added: Converting a Macro from VBA to Clarion using OfficeInside (recommended reading)
• Added: Passing Parameters (oiParams)  (recommended reading)
• Fixed: Generics example the msOutlook.Kill method was setting the optional unloadCOM parameter to 0 by default rather than 1. When the object was used on a thread which was created multiple times this would result in a failure the second time the thread was started.

Outlook

• Added: DocToMsg example in the Generics example folder. Creates an Outlook mail message from a Word document and sends it.
• Added: msWord.GetMailEnvelope() method to the msWord class. This returns the Mail Envelope item which can be used to create an Outlook Mail Item from a Word document. Demonstrated in the Generics\DocToMsg.app example.
• Added: msOutlook.DocToMsg method which takes the Envelope item returned by the msWord.GetMailEnvelope() method, creates an Outlook Mail Items and sends it using the provided destination address and subject line. Demonstrated in the Generics\DocToMsg.app example.

Version 3.75 Beta - 21 February 2012

General

• Fixed: An error in the template which result in the OfficeInside TakeEvent embed code being orphaned.
• Fixed: oiObject.GetChildEx failing because the call to oiObject.FromVariant was not passing the child object.
• Fixed: GPF when calling oiObject.GetChild or GetChildEx with invalid objects or Null parameters.
• Added: oiObject.ErrorTrap method which improves error handling and translates COM errors.
• Added: Passing objects as parameters when calling methods using the oiObject class.
• Added: Demonstration of adding Page Breaks to the Generics example. This calls the msExcel.AddPageBreak method (in msOffice.clw in the Generic folder). It demonstrates working with Sheets, retrieving a collection (Sheet.PageBreaks), getting a child object where the GetChild call requires multiple parameters (Calling GetChildEx to get Sheet.Range), and calling methods which take multiple parameters (using the self.Params object). It also demonstrates calling a method which takes another object as a parameter - PageBreaks.Add(), which takes a Range parameter

Version 3.74 Beta - 10 February 2012

General

• Added: oiObject.InitFromID method. Primarily for internal use, provides intialization of objects by ID rather than name.
• Fixed: The oiExcel.GetWorkbooks() method moved to using the new InitFromID and now correctly returns the Workbooks collection.
• Added: msExcel.OpenXML Procedure(string name, long loadOption=2). This is demonstrated in the Generics example application. This method can be used to open an XML file in Excel and import the data into columns, with field names headers etc.

Version 3.73 Beta - 09 January 2012

• Regression fix introduced in 3.72 - in Clarion 7.3 and up was trying to use C70OFF.DLL instead of CLAOFF.DLL
• Regression fix introduced in 3.72 - in Clarion 7.3, where FileExporer was used in the same app in local mode, there were duplicate symbols.

Version 3.72 Beta - 06 January 2012

General

• Added: New and updated methods to the classes provided with the Generics example application:
  • msWord.SetStyle - sets the style of the current selection
  • Updated the msOutlook.NewMail method . Supports getting the Attachments object for a mail item and adding new attachments; setting the HTML body as well as the text body, and auto saving a draft:

    msOutlook.NewMail Procedure (<string subject>, <string mailTo>, <string body>, <string htmlBody>, <*msAttachmentsList attachments>, bool autoSave=false)
  • Added automated Outlook restart to the Generics example (this is already demonstrated in the oiMail example). This functionality detects the Quit event if the user exits Outlook while the application is automating it, and creates a new instance of Outlook for automation to continue functioning.
• Fixed: Incorrectly named export for the oiParams.Fetch method.
• Fixed: Generation errors in Legacy applications in Clarion 8.
• Fixed: The Editable Report output to for Word and Excel creating zero byte temp files.

Excel

• Fixed: The Editable Report output to Excel failing to save in Clarion 8.
• Updated: Excel editable report save automatically replaces old files and saves based on the file extension if specified for Office 2007 and up (or the default format for that version of Office if no file extension is set).
• Added: The SaveAs method now disables alerts when saving to prevent prompts for overwriting existing files etc.
• Added: Expanded the HowTos and Examples section of the oiExcelImpEx classes:
• HowTos and Examples

  Save a File to an Excel Workbook.
  Save a Browse Queue to an Excel Workbook
  Save a View to an Excel workbook

  Load from an Excel SpreadSheet into a Queue
  Load from an Excel Spreadsheet into a File (Table)

  Override the TakeRecord and InsertRecord methods

  Export data to an existing Excel file (appending to or overwriting part of a worksheet)

Word

• Fixed: PrintOut method failing and not printing the document depending on the parameters passed.

Version 3.70 Beta - 02 September 2011

General

• Fixed: Error with Multi-Proj template settings for applications in C7.1 and up resulting in Duplicate Symbol errors.
• Updated: Removed verbose logging from the Excel editable report output class.
• Fixed: Compile warning - The Generics example class msOutlook.Init not returning a value.
• Updated: The Generics example class msOutlook.SendReceiveAll to allow it to be called as a procedure (without checking the return value).
• Updated: The msOffice.clw and msOffice.inc files in the HTML Mail (FileExplorer) example.
• Note: Clarion 7.3 and 8 have a bug which causes Duplicate Symbol errors on the Construct@F11PWCOMINITER method when compiling in LIB mode. This has been reproduced and reported to SoftVelocity.
• Fixed: Typo in the Fetching and Saving Attachments section (the GetMailAttachmentsQ method was incorrectly spelled).
• Added: Fetching and Saving Attachments section to the Contents
• Updated: The Outlook Contents section of the documentation
• Added: The Demo example now demonstrates retrieving a list of attachments for a message and saving all attachments to disk in the Outlook_ReadEmailFolders example procedure.
• Fixed: Template note adding the oiImpEx.clw to the project for C55 applications.
• Added: C55 and Legacy compatibility to the oiImpExcelEx class
• Added: C55 Legacy version of the ImportExport example
• Fixed: Incorrect Get statement in the ImportExport example.

Version 3.66 Beta - 02 August 2011 General

• Fixed: Missing files in the HTML Mail (FileExplorer) example.
• Added: New methods to the msOutlook class used in the Generics example which demonstrates the new functionality provided by Office Inside 3. The new code demonstrates how to trap Outlook events and how to automatically restart Outlook in the background if it is closed by the user.
  • Init() - calls the parent's Init method and stores the current thread number for event handling
  • New event handling methods:
    EventItemSend Procedure (), derived
    EventNewMail Procedure (), derived
    EventReminder Procedure (), derived
    EventOptionsPagesAdd Procedure (), derived
    EventStartup Procedure (), derived
    EventQuit Procedure (), derived
  • TakeEvent - handles events from the current thread
  • OnQuit - traps the Quit event for Outlook and checks whether Outlook was closed by the object or the user. If the user closes Outlook it is re-initialized.
  • RestartOutlook - Restarts Outlook in the background if the user closed the last Outlook window or inspector.
• Fixed: msOutlook.UpdateAttendees and msOutlook.AddAttendees where checking the optional parameters incorrectly
• Added: LegacyMail.app example to the Generics example directory. Identical to the Mail.app except that it is based on the Clarion rather than ABC template chain.
• Updated: Removed extraneous code from the Mail.app example (in the Generics folder).

Version 3.65 Beta - 2 June 2011 General

• Fixed: The msOffice.clw and msOffice.inc files shipped with the Generics.app and Mail.app examples (Examples\OfficeInside\Generics\) were not included correctly in the last release.

Version 3.64 Beta - 1 June 2011 General

• Improved: The GetOfficeVersion method now retrieves the version directly from the object and only falls back to reading from the registry in the case where this fails.
• Added: oiOffice.GetVersionFromRegistry method. This is equivilent to the older GetOfficeVersion method and retrieves the current version of Office using the registry. It also checks for the presence of the the Microsoft Office Compatibility pack when checking installed versions.
• Improved: All the Version.lib API functions are now loaded at runtime and version.lib is no longer linked into either the DLL or LIB. This ensures that OfficeInside does not conflict with other accessories that use these APIs.

Excel

• Fixed: oiExcel.GetWorksSheets(*oiObject) not retrieving the Worksheets object correctly

Outlook

• Added: New HTML Email example. Demonstrates displaying the HTML version of Emails retrieved from Outlook using CapeSoft FileExplorer.
• Added: New Mail example (in the Generics directory). Use new code in the msOffice.clw and msOffice.inc files provided with the example:
  • New msOutlook.GetFilteredMail method retrieves all items in the specified folder using column restriction and optionally record filtering in
  • New msOutlook.MailByDate demonstrates using the mail filtering to retrieve mail that matches a date range
  • New msOutlook.FindMail method demonstrates using Find and FindNext to retrieve mail that matches a filter expression.
  • Demonstrates Restrict, SetSort, SetColumns, FirstItem, NextItem, ResetColumns, FindItems, FindNext etc.
  • Added benchmarking of the various approaches to filtering and retrieving mail. Test benchmark results with 806 items in the Inbox:
    • Fetch all 806 items using SetColumns in the msOutlook.GetFilteredMail example method to optimize the record retrieval:

      1.74 seconds

    • With Restrict to limit mail being fetched to the desired range using the msOutlook.GetFilteredMail example method:

      0.04 seconds

    • Using FindItems and FindNext to filter and fetch mail items (See the msOutlook.FindMail example method):

      0.05 seconds

    • Using the old GetMailItemsQ method to fetch all items:

      9.55 seconds

• Fixed: The Restrict method now correctly restricts the Items collection for the current folder to the specified range.
• Added: UnRestrict method to remove the filter on the collection for the current folder set by calling Restrict.
• Added: SetSort method sets the sort order for a collection in Outlook (For example sets the order that Mail items are retrieved in based on a field such as Received Date).
• Fixed: NextItem method now correctly returns the child in all cases
• Added: Force parameter to the GetItems method. By default this now returns the current Items collect on exists or retrieves the collection if it does not (and fetches the default Folder collections if required). The Force parameter allows the Items collect to always be retrieved, and one exists the current one is released first.
• Changed: The FindNextItem method is now named FindNext.

Work in Process

• Added: New AddPageBreak method to the msExcel class in the Generics example. Demonstrates:
  • Using the Worksheets, ActiveSheet and Range object
  • Passing an Object as a parameter to a Office method (this is a Work In Progress)
• Deprecated: oiBase.ToVariant method.

Version 3.63 Beta - 11 May 2011

General

• Added: GetType and GetTypeName methods to retrieve the type of a Property and the description of that type.
• Fixed: Bug in the handling of Boolean values when converting to Variants in the PWVariantFactory class.
• Added: Documentation and example code for the GetType and GetTypeName
• Fixed: Incorrect equate for type handling

Version 3.62Beta - 09 May 2011

General

• Template update for Clarion 8 compatibility. Resolved unresolved externals and other errors im Clarion 8.

Version 3.61 Beta - 06 May 2011

General

• Added: The Generics example now demonstrates populating a queue with mail using the standard GetMailItemsQ method as well as retrieving all individual mail properties using the oiObject class and displaying them on a window. The GetMailInfo method of the new msOutlook example class provides this functionality (see msOffice.clw in the Generics example folder).
• Added: Additional documentation for oiObject and oiParams.
• Added: oiObject.Get() methods now handle multiple return types and internal conversion automatically. The returned variant type is read and an intelligent conversion is done on the passed type.
• Added: oiObject.SetBool method for setting a boolean value.
• Added: oiObject.SetConst method for setting a value that should be set to one of a set of specified constants (this is the equivilent to calling Set() and passing it a Short, however it also allows equates and constant values to be passed.
• Added: oiParams.AddBool method to allow boolean values to be added to parameters being passed to a method with more clarity (rather than calling AddInt with the isBoolean set to True).
• Added: The AddString method now supports passing Constants (equates) and Shorts using the oiParam:Const and oiParam:Short values for the pType parameter
• Added: oiObject.Get(*short) and oiObject.GetProp(*short) methods.
• Added: oiObject.Set(*short) method.
• Added: Additional oiObject documentation, fixed missing anchors, documented new methods.
• Added: new msWord, msExcel and msOutlook classes, demonstrated in the Generic example (see the msOffice.inc and msOffice.clw files in the Generics example folder). These classes demonstrate extending the functionality built in classes using oiObject. All the demonstration functionality that uses the oiObject class is now demonstrated in these classes, which can be reused and extended in your own applications.
• Added: Each of msWord, msExcel and msOutlook example classes are extensively documented in themsOffice.inc and msOffice.clw files. The description for each method, along with each parameter, the return types and any additional comments are in the CLW file above each method.
• Added: msWord class methods:
  • GetObjects Procedure (), bool, virtual
  • MergeFiles Procedure (FILE:queue filesQ), bool, virtual
  • InsertFile Procedure (string fileName), bool, virtual
  • PasteAndFormat Procedure (long formatType = oiw:FormatOriginalFormatting), bool, virtual
  • NewDoc Procedure (<string template>, long newTemplate = oi:False, long documentType=oiw:NewBlankDocument, long visible=oi:True), bool, virtual
  • GetCellValues Procedure (*WordTableCells cells, long tableNum = 1), bool, virtual
• Added: msExcel class methods:
• GetPageSetup Procedure (), bool, virtual
• AddNamedRange Procedure (string rangeName, string rangeValue), bool, virtual
• Added: msOutlook class methods:
• GetMailItem Procedure (string itemID), bool, virtual
• MoveMessage Procedure (string itemID, <string folderName>), bool, virtual
• NewMail Procedure (<string subject>, <string mailTo>, <string body>), bool, virtual
• SaveMailAs Procedure (string fileName, long mailFormat=oio:olMSG, bool openSavedFile=false), bool, virtual
• SetFileName Procedure (long mailFormat=oio:olMSG), string, virtual
• SendReceiveAll Procedure (), bool, virtual
• GetAttendees Procedure (<string itemID>), string, virtual
• UpdateAttendees Procedure (string attendeeName, <string itemID>), string, virtual
• AddAttendee Procedure (string attendeeName, <string itemID>, long busyStatus = oio:Busy, long requiredAttendee=oio:Required), string, virtual
• GetMailInfo Procedure (*mailInfoType mailInfo)
• SetBusy Procedure (long isBusy = oi:True), bool, virtual
• Added: the Conversion methods are now available for all of the Office application objectL
  • PicasToPoints procedure (long pPicas), long, name('PICASTOPOINTS@F15OIOFFICE')
  • PixelsToPoints procedure (long pPixels), real, name('PIXELSTOPOINTS@F15OIOFFICE')
  • PointsToCentimeters procedure (long pPoints), real, name('POINTSTOCENTIMETERS@F15OIOFFICE')
  • PointsToInches procedure (long pPoints), real, name('POINTSTOINCHES@F15OIOFFICE')
  • PointsToLines procedure (long pPoints), real, name('POINTSTOLINES@F16OIWORD')
  • PointsToMillimeters procedure (long pPoints), real, name('POINTSTOMILLIMETERS@F15OIOFFICE')
  • PointsToPicas procedure (long pPoints), real, name('POINTSTOPICAS@F15OIOFFICE')
  • PointsToPixels procedure (long pPoints), long, name('POINTSTOPIXELS@F15OIOFFICE')
  • LinesToPoints procedure (long pLines), long, name('LINESTOPOINTS@F15OIOFFICE')
  • InchesToPoints procedure (real pInches), real, name('INCHESTOPOINTS@F15OIOFFICE')
  • CentimetersToPoints procedure (real pCentimeters), real, name('CENTIMETERSTOPOINTS@F15OIOFFICE')
  • MillimetersToPoints procedure (real pMillimeters), real, name('MILLIMETERSTOPOINTS@F15OIOFFICE')
• Added: New functionality to the Generics Example (highly recommended):
  • All the oiObject functionality which this example is based on has been moved into three classes - msWord, msExcel and msOutlook. These are in the msOffice.clw and msOffice.inc files in the example folder. These classes provide all the normal functionality provided by the OfficeInside classes and expand on them. They serve as an excellent basis for building your own classes to expand the built in functionality as needed. The functionality and parameters of each method are documented above each method in the CLW file.
  • ConvertUnits procedure - a generic procedure to convert between millimeters, points and centimeters. Handles all input and output units.
  • Extensive Page Setup example code and interface. Demonstrates using the PageSetup object and creating a user interface for the properties. Also demonstrates retrieving the PageSetup values from Excel.
• Changed: Improved the accuracy of all unit conversion methods to ensure that rounding issues wouldn't cause values to degrade when switching a values between units a large number of times.
• Note: For a full reference on all objects available in the Office Object Model see the MSDN developer reference:
• Excel: http://msdn.microsoft.com/en-us/library/bb149081%28office.12%29.aspx
• Outlook: http://msdn.microsoft.com/en-us/library/bb208225%28office.12%29.aspx
• Powerpoint: http://msdn.microsoft.com/en-us/library/bb265987%28office.12%29.aspx
• Word: http://msdn.microsoft.com/en-us/library/bb244515%28office.12%29.aspx

Version 3.60Beta - 4 April 2011

Word

• Fixed: CloseDoc/NewDoc were not releasing all documented interfaces for the previous document, which could result in method calls failing on the new document.The interfaces were correctly released at object construction, so this only affected the creation of multiple consecutive documents.
• Fixed: Spell checking not correctly ignoring HTML escape codes where an escape code was used without any characters other than white space between a pair of tags.

Version 3.59 Beta (1 April 2011)

General

• Updated: The SpellCheck HTML example application which demonstrates spell checking HTML using OfficeInside and the FileExplorer HTML Editor:
  • Requires FileExplorer 5.31 or later
  • Removed old code.
  • Initial HTML populated into the control to demonstrate the use of the EditorReady method as well as populating the control for formatted HTML with a number of spelling errors for spell checking.
  • Updated the Editor Files being used by the example

Word

• Fixed: The SpellCheckHtml example clipping spaces when a section of HTML between two tags ended in one or more spaces. The number of spaces is now retained regardless of any other changes that occur during spell checking.
• Fixed: HTML escape codes such as '&nbsp;' were not always being correctly handled when spell checking HTML.

Version 3.58 Beta (30 March 2011)

General

• Added: SpellCheck HTML (FileExplorer) example application demonstrates using the OfficeInside spell checking to spell check HTML (uses FileExplorer to provide an HTML editor).

• Updated: The SpellCheckHtml method now handles basic HTML escape codes.

oiObject and oiParam - Generic Object

• Fixed: The oiObject pointer for the current object and parent object were not being set to Null in the constructor, which could result in incorrect behaviour if they were assumed to be null when the object was created using New().
• Added: Expanded the Outlook functionality demonstrated by the Generics example:
• Added: Generics example expanded Mail and Appointment functionality:
  • Mail creation
  • Sending and receiving (synchronization)
  • Moving mail between folders
  • Retrieving a specific folder
  • Retrieving a Message object
  • Saving items as all formats supported by Outlook (Text, Word, MSG, Unicode MSG, vCard, vCal, iCal etc.)
  • Retrieving appointment objects and getting and setting their properties and calling methods
• Added: oiObject.MoveTo method moves one object into another, and clears all of the source object properties.

Outlook

• Added: oiOutlook.FindChildFolder locates a specific folder by name by recursing through all sub folders for a parent.
• Fixed: The oiOutlook.WithFolder was not checking whether the currently select folder pointer was valid correctly. This method is demonstrated in the Generics example.
• Fixed: The oiOutlook.WithFolder method was not retrieving the folder selected as the parent interface was not being used correctly.
• Changed: The oiOutlook.WithFolder method now recurses through all folders in order to locate a folder by name. This allows it to fetch any sub folder based on the folder name.
• Fixed: The oiOutlook.MoveItem(string folderName) method was not always retrieving the specified folder correctly. This method is demonstrated in the Generics example.
• Added: Both MoveItem methods now allow the Item to be passed. If it is omitted, then the currently item (oiOutlook.pItem) is used.
• Change: The FindItems method has been renamed to FindItem, as it retrieves a specific item. Use the FindNextItem method to fetch the next matching item.
• New: Generic Access to Outlook Items section in the documentation covering the properties used and the following methods:


  CountItems	Returns the number of items in the current Items collection
  DeleteAllItems	Clears the current Items collection
  FindChildFolder	Retrieves the child folder from a parent Folder that matches the specified name. This performs a recursive search using the specified parent as the root.
  FindItem	Finds an item in the current Items collection (folder) based on a search string. The FindNextItem method can be used to find the next matching item.
  FindNextItem	Finds the next Item matching the search term use with the FindItem call
  GetDefaultFolder	Retreives the default Inbox folder as well as the root folder (Data Store) which contains the Inbox and all other folders for that store.
  GetItems	Retrieves the Items interface which represents items in a folder
  GetItem	Retrieves a specific item
  GetItemByID	Retrieve an item from any folder based on the unique Outlook ID
  GetItemByValue	Retrieves an item from the current Items (folder) based on the value of the default field for that item (the default field varies depending on the item type)
  GetNameSpace	Retreives the Outlook Namespace. This is the "root" for all the rest of the data sets stored by Outlook.
  LastItem	Retrieve the last item from the current Items collection
  MoveItem	Moves an items from one folder to another in Outlook
  MoveItems	Moves all items in the current Items collection to the specified folder. Allows optional filtering of the items based on a filter expression.
  NextItem	Retrieve the next item from the currently selected folder (Items collection)
  PreviousItem	Retrieve the previous item from the currently selected folder (Items collection)
  RemoveItem	Removes the item from the Items collection (this does not delete the actual Item from Outlook). This is the equivilent of filtering out unwanted records from a record set.
  Restrict	Set a record filter for the result set of items being returned by Outlook. This allows specific items to be retrieved based on any of the fields in Outlook.
  ResetColumns	Resets Outlook to fetch all columns (fields)
  SetColumns	Restrict the columns (fields) being retrieved by Outlook for items. This can improve performance by only retreiving data required, rather than retrieving all fields that Outlook stores for each item. This is effectively a View on a database.
  SortItems	Sort the items in an Items collection in either acending or decending order using the Outlook field specified.
  WithFolder	Selects a specific folder by name

• Updated: All documentation example code moved from static syntax highlighting to dynamic JavaScript/CSS syntax highlighting.

Version 3.57 Beta (15 March 2011)

oiObject and oiParam - Generic Objects

• New: Expanded the Generics example to add Word functionality and demonstrate a variety of the objects available.

oiExcel

• Fixed: The Excel report output missing columns when processing reports with controls which would overlap columns created for previously processed controls on the page.

Version 3.56 Beta (02 March 2011)

oiObject and oiParam - Generic Objects

• Added: oiParam.AddNull() method. Adds a "null" parameter to the list. This allows optional parameters to be omitted.
• Updated the Generics example with new examples of Outlook, Word and Excel functionality.

Outlook

• Added: GetItemById() method. Retrieves an oiObject for an item using the passed EntryID.
• Added: GetItemByName() method. Retrieve and oiObject of an Outlook item based on the passed name (Outlook matches this against the default field on the item type to find the specified item).

Version 3.55 Beta (24 February 2011)

General

• Added .attachExisting property. If this is set before the call to the Init method then the object tries to attach to the existing instances of Word, Excel or Powerpoint if there is one, rather than creating a new instances. When the object closes down it does not close the application by default (the application can be explicitly closed by setting the attachExisting property to False before calling the Kill method).
• Added a Log method to the oiCore class (available in all classes throughout Office). This sends the passed string to the system debug output.
• Added a errorMessage and errorFunction property to the based classes. Any call to ErrorTrap() will populate these two strings, which can then be used to display error messages etc. The errorMessage property stores the error message, and errorFunction stores the name of the method that it occured in.

oiObject and generic objects

• New: oiParams class that allows any number of parameters to be passed to any Office object. See the Generics example. New methods:
  • Construct Procedure ()
  • Destruct Procedure ()
  • Free Procedure ()
  • Count Procedure ()
  • Fetch Procedure (long pos)
  • AddString Procedure (string sVal, long pType = 0)
  • AddBString Procedure (string bs)
  • AddInt Procedure (long pVal, bool isBool=false)
  • Insert Procedure (*long pVal, bool isBool=false)
  • Insert Procedure (*ulong pVal)
  • Insert Procedure (*string pVal)
  • Insert Procedure (*cstring pVal)
  • Insert Procedure (*short pVal)
  • Insert Procedure (*ushort pVal)
  • Insert Procedure (*byte pVal, bool fUnsigned = false)
  • Insert Procedure (*real pVal),
  • Insert Procedure (*sreal pVal)
  • Insert Procedure (*decimal pVal)
  • Insert Procedure (*long pDate, *long pTime)
  • Insert Procedure (*oiVariant pVal)
  • Insert Procedure (*oiObject pObj)
  • _AddVariant Procedure (long pVar)

• New: oiObject.CallEx Procedure calls any member of the Office object with the parameters stored in the oiObject.params member.
• New oiObject.Call procedure. Functionally the same as CallEx(), except that it takes a oiParams object rather than using the oiObject.params member.
• New: oiObject.GetProp Procedure (string propertyName, *oiVariant pValue)
• New: oiVariant type that allows any Office type to be represented in Clarion applications
• Updated the Generics example to demonstrate the use of the new methods and classes. Note: This example has been moved to Clarion 6, as C55 does not support embedding Vista/Windows 7 manifests natively, which is required to interface with Outlook 2010. Not including a valid Vista/Windwos 7 manifest will cause the Outlook 2010 security dialog to not be displayed correctly (note: by default this dialog is only displayed when there is no up to date anti-virus installed, so this behaviour won't occur on many systems).
• New: oiObject.SetString Procedure (string propertyName, string pValue)
• New: oiObject.SetInt Procedure (string propertyName, long pValue)
• New Functionality in the Generics example application:
  • Creating a new mail message and setting the values for properties such as the Subject, Body and To fields.
  • Saving a mail message to disk in a variety of formats such as text, HTML, MSG, Word Doc etc. (this demonstrates the new oiParams class which allows any number of parameters to be passed when accessing methods and properties of the Office objects).
  • Send and Receive All (Synchronise). Demonstrates getting a collection (of Synch objects), looping through the collection and getting each object within it, and calling a method of that object.
  • Listing, retrieving and modifying Appointments items (this code existed in previous versions of the example, but has been improved).
  • New oiWord example, demonstrates basic functionality - custom Pasting setting the formatting options

oiExcel

• New: Find method allows the document to be searched and returns the address of the cell that the data is found at.
• New: GetRangeAddress method returns the address that an Range object starts at.

Version 3.54 Beta (13 December 2010)

General

• This version is compatible with Clarion 7.3
• Updated documentation for oiOutlook with new examples of using the generic objects to perform tasks like performing a Send/Receive programatically etc.

Word

• Fixed: The PrintOut example was calling the Init method for Excel and Word twice, which was preventing it from opening documents correctly.

oiExcelImpEx

• Fixed: The CLW file was not being included in the project by the template, resulting in unresolved external errors.
• Fixed: The SetMap method was not correctly setting all queue entries based on the passed queue.
• New ValidateRecord example code in the documentation
• Added ValidateRecord example code to the ImportExport example application
• Added example data to the ImportExport example

Version 3.52 Beta (12 August 2010)

General

• Updated documentation for oiOutlook with new examples of using the generic objects to perform tasks like performing a Send/Receive programatically etc.
• Fixed: The PageSetup method was failing as the properties were set for the wrong interface.

Version 3.51 Beta (12 August 2010)

General

• Updated documentation for oiExcel to include additional examples
• Expanded the oiExcel How To section with new code examples
• Expanded the color handling sections and added links to all relevant methods, properties and other documentation to each of the section.
• Added new color handling sample code.
• Marked old export functions as deprecated and added notes linking to the new oiExcel class.
• Fixed typographic errors
• Expanded documentation for a number of methods in the oiExcel class, added code samples and reformatted the documentation in the new style (including parameters, return value, remarks, examples and references).

Version 3.50 Beta (12 August 2010)

General

• Clarion 7.2 compatibility updates.

oiObject

• The oiObject documentation is now available and documentats the entire class.
• Added a HowTo section to the oiObject documentation.
• The following methods are now available:
• Init procedure (string pName, *oiObject iParent, <long itemNumber>)
• Kill Procedure ()
• GetChild procedure (string cName, *oiObject child, <*long itemNumber>)
• GetChild procedure (string cName, *oiObject child, *string identifier)
• GetParent procedure (*oiObject iParent)
• AsVariant procedure ()
• Get procedure (string propertyName, *long pValue)
• Get procedure (string propertyName, *string pValue)
• Get procedure (string propertyName, *long dateValue, *long timeValue)
• Note: Under Clarion 5.5, the "Get" methods are named "GetProp".
• Set procedure (string propertyName, *real pValue)
• Set procedure (string propertyName, *string pValue)
• Set procedure (string propertyName, *long pValue)
• Set procedure (string propertyName dateValue timeValue)
• Set procedure (string propertyName pValue)
• Set procedure (string propertyName, *oiObject pObj)
• Call procedure (string methodName)
• Call procedure (string methodName, *long pValue)
• Call procedure (string methodName, *string pValue)
• Call procedure (string methodName, *oiObject pObj)

oiExcelImpEx

• New oiIExcelmpEx documentation.
• Added a How To and Examples section, including code for the most frequently used functionality in the class, and the various scenarios that it is used in.
• Note: The Colum/Field mapping support has not been fully tested in this release. It will be tested and new set of examples and templates will be provided with the next release.
• New methods that are now available:
  • Construct Procedure ()
  • Destruct Procedure ()
  • Init Procedure ()
  • InitExcel Procedure ()
  • Kill Procedure ()
  • Open Procedure (string p_FileName)
  • NewWorkbook Procedure (string p_FileName)
  • SaveFile Procedure ()
  • OpenFile Procedure ()
  • CloseFile Procedure ()
  • With Procedure (*File f)
  • With Procedure (*Queue q)
  • With Procedure (*Group g)
  • With Procedure (*View v)
  • Load Procedure (*File p_File, string p_FileName)
  • Load Procedure (*Group p_Group, string p_FileName)
  • Load Procedure (*Queue p_Queue, string p_FileName)
  • Load Procedure (string p_FileName)
  • SetupLoad Procedure ()
  • Save Procedure (*Group p_Group, string p_FileName)
  • Save Procedure (*File p_File, string p_FileName)
  • Save Procedure (*Queue p_Queue, string p_FileName),long
  • Save Procedure (*View p_View, string p_FileName)
  • Save Procedure (*string p_FileName)
  • SetupSave Procedure()
  • SaveData Procedure()
  • TakeInit Procedure ()
  • TakeSetup Procedure ()
  • TakeComplete Procedure ()
  • ValidateRecord Procedure ()
  • TakeRecord Procedure (*excelImportQType cellsQ)
  • InsertRecord Procedure ()
  • AssignField Procedure ()
  • IgnoreField Procedure (long fieldNum)
  • ClearIgnored Procedure ()
  • Close Procedure ()
  • CloseAndKill Procedure ()
  • CreateFooter Procedure ()
  • CreateHeader Procedure ()
  • AddMap Procedure (long fieldPos colPos)
  • SetMap Procedure (*oiColumnMap qMap)
  • GetMap Procedure (*oiColumnMap qMap)
  • CreateMap Procedure ()
  • ClearMap Procedure ()
  • FieldName Procedure (long fieldPos), string
  • ColumnName Procedure(long columnNumber), string
  • CountFields Procedure()
  • SetHeader Procedure (string headerText, long colPos)
  • HeadersFromFields Procedure (long caseType = 0, long keepPrefix = false)
  • RunFile Procedure (string fileName)
  • FreeData Procedure ()
  • FreeFileData Procedure ()
  • FreeQueueData Procedure ()
  • FreeGroupData Procedure ()
  • ProgressControl Procedure (long progressControl)
  • ProgressSetup Procedure (long rangeLow rangeHigh)
  • ProgressSet Procedure (long progress)
  • ProgressIncrement Procedure ()
  • DbgMsg Procedure (string pDbgMessage)
  • ErrorTrap Procedure (string errorMessage, string functionName)
  • IsIgnored Procedure (long pos)
• Internal Methods
  • _ClearReferences Procedure ()
  • _ClearAutos Procedure ()
  • _GetRecord Procedure ()
  • _GetViewRecord Procedure (long fieldPos)
  • _ClearRecord Procedure ()
  • _SetHeaderText Procedure(*string hText)

• The following Properties are now available:
• dataType long - The data type being import or exported
• debug long - Enable debug output

  Properties used for both import and export
• colMap &oiColumnMap - Maps columns to fields
• ignored &oiIgnored - Ignored fields or columns
• killWhenDone long
• excelFile string(280) - Name of the Excel document

  Properties that modify the position to process from, and the number of records to process. These are cleared at the end of each load/save call.
• startRow long - Row to start at in the Excel document
• startCol long - Column to start at in the Excel document
• curRow long - The current row being read/written
• curCol long - The current column being read/written
• numRows long - Number of rows to process
• numCols long - Number of columns to process
• startField long - Field to start at in the data structure when importing or exporting
• numFields long - Number of fields to export
• curRecPos long - Position of the record being processed
• currentField Any - The current field in the data structure
• currentFieldNumber long - Position of the current field
• progressControl long - Optional handle to a progress control
• hideProgress long - Used to automatically unhide a progress control during the process, and then hide it again when complete
• action long - If this is oix:Save, then a save (export) is being performed, otherwise a Load (import) is being performed
• lastError long - The last error code
• errorMessage string(1024) - the error message associated with the last error
• openAfterSave long - If set the file is opened once the save is complete

  Export properties
• commitFileRecords long(1024) - How many file records to process in LOAD before committing
• headers &oiHeaders - Queue of custom headers for each column
• appendToFile long - If this is set, then the Excel workbook is appended to
• Import properties
• freeBeforeLoad long - Clear/Empty the data structure before loading
• cellsQ &excelImportQType - Queue of cell data for the current row. Allows filtering and modification in the

  Internal Properties
• f &File
• q &queue
• g &group
• v &View
• rec &group
• fileOpened long, dim(100)
• viewOpened long
• bindPushed long
• Removed uneeded global extension from the ImportExport example, and corrected the path to the included oiImpEx.clw file.

Excel

• Documented new methods:
  • PrintSheet procedure (*oixPrintProperties printSettings)
  • PrintWorkbook procedure (*oixPrintProperties printSettings)
  • _PrintOut Procedure (*oixPrintProperties printSettings, long pType=oix:PrintWorkbook)
  • SetAlerts Procedure (long alertLevel)
  • GetActiveSheet Procedure (*oiObject iSheet)

Outlook

• Updated Case 1659 (UAC breaks interaction with Outlook): Ensure that your applications that will interact with Outlook have a valid manifest file for Vista/Windows 7. Without a valid manifest file, your application may require elevation in order to run, which will prevent Outlook 2007 and 2010 from displaying security prompts to the user. In the event of a security prompt requiring user interaction, this will prevent your application from interacting with Outlook, and it may appears as if your application has locked up while waiting for a response from Outlook. It is strongly recommended that elevated applications do not interact with Outlook directly. The Microsoft design recommendations should be followed - seperated the functionality that requires elevation into a seperate application, or seperate the components that interact with Office into applications that can be run without requiring priviledge elevation.
• Updated the FAQ with the above information.
• Updated the Outlook security FAQ to cover Outlook 2003 and earlier, Outlook 2007 and Outlook 2010
• New methods ot provide generic access to Outlook using the oiObject class, as to provide improved performance and flexibility when retrieving multiples items (Mail, Contacts, Appointments etc.). Allows the columns to be restricted (improving performance), as well as query style (filtered) access to Outlook data, for dramatically improved performance and efficiency when fetching large data sets, and the ability to synchronise data between Outlook and Clarion.
• GetNameSpace Procedure()
• GetDefaultFolder Procedure()
• WithFolder Procedure(string folderName)
• GetItems Procedure()
• GetItem Procedure(long itemPos)
• GetItem Procedure(long itemPos, *oiObject pItem)
• NextItem Procedure()
• PreviousItem Procedure()
• FirstItem Procedure()
• LastItem Procedure()
• Restrict Procedure()
• SetColumns Procedure()
• ResetColumns Procedure()
• RemoveItem Procedure()
• DeleteItems Procedure()
• MoveItem Procedure(string destFolderName)
• MoveItems Procedure(string destFolderName)
• FindItems Procedure(string searchString)
• FindNextItem Procedure()
• CountItems Procedure()
• _Cleanup Procedure()
• New Properties:
• pNameSpace &oiObject - Root MAPI namespace
• pRootFolder &oiObject - The Folders collection that contains the default inbox

  Default folders for each of the item types
• pMailFolder &oiObject
• pContactFolder &oiObject
• pCalendarFolder &oiObject

  Current items
• pFolder &oiObject
• pItems &oiObject - The current Items collection
• pItem &oiObject - The currently selected item
• Fixed: The Reminder flag is now correctly retrieved when reading appointments.


Version 3.41 Beta (9 June 2010)

General

• Expanded the new oiObject documentation to cover all the methods provided, along with examples detailing the use of each of the methods and properties.
• The oiObject class now supports passing objects to methods as parameters. See the Moving Mail Between Folders HowTo for an example.
• Fixed a GPF in the Kill method as a result of a pointer being disposed of twice.

Version 3.40 Beta (4 June 2010)

General

• Clarion 7.2 Compatibility.
• Expanded the "Generics" example and added a new section documenting the new oiObject class, which provides full access to the Office Object Model.
• Coming soon: Additional examples of using oiObject to move mail and other items between folders in Outlook, as well as manipulating Excel, Word and Powerpoint.

Excel

• New oiExcelImpEx class provides powerful and simple import and export functionality to and from Excel using Clarion Files, Queues, Views and Groups.
• Added an ImportExport example that demonstrates using the new oiExcelImpEx class.
• Initial oiExcelImpEx documentation
• Coming soon: new import and export templates.

Version 3.21 Beta (7 May 2010) General

• Resolved duplicate symbol error in C7.1 in local (lib) mode for apps using FileExplorer and OfficeInside.
• Resolved a duplicate symbol error in C7.1 in local mode when using both the Topspeed and DB4 file drivers and Insight Graphing with OfficeInside and FileExplorer.

Version 3.21 Beta (3 May 2010)

General

• New "Generics" example demonstrates using the oiObject class to interact with Outlook.
• Expanded the oiObject support in the oiOutlook class, to allow objects to be retrieved and used more effectively.
• New: oiGetChild() method that allows a string to be passed specifying which child is retrieved.
• For example, get an Appointment Item from Outlook based on the ID, set and get properties from the object, and then add a Recipient (an attendee) to the appoinment, and set properties for that object.


  ! Data
  Outlook       oiOutlook
  Namespace     oiObject
  Appointment   oiObject
  Recipients    oiObject
  Attendee      oiObject
  ItemID        string(_oit:EntryIDSize)  ! Standard Entry ID
  attendeeList  string(1024)  ! semi colon seperated list of attendees

  ! Code
  AddAttendee routine
      ident = 'MAPI'
      if Outlook.iApplication.GetChild('GetNamespace', Namespace, ident)
          ! Get the specific appointment object
          if Namespace.GetChild('GetItemFromID', Appointment, ItemID)
              Appointment.Set('BusyStatus', oio:Busy) ! Example of setting a property

              ! Get the Recipients object that is a child of the Appointment
              if Appointment.GetChild('Recipients', Recipients)

                  ! The recipients object is now fully accessible, so for example,
                  ! Add a recipient and get the returned object so that it can be modified.
                  if Recipients.GetChild('Add', Attendee, attendeeName)  ! Add to the recpients
                      Message('Attendee Added.')
                      Attendee.Set('Type', oio:Required)
                  else
                      Message('Failed to add an Attendee.')
                  end

                  ! Other methods available for the Recpients object include:
                  ! Add(), Item(), Remove() and RemoveAll()

                  Appointment.Call('Save')

                  ! Refresh the list of attendees (C55 users should call GetProp instead of Get).
                  Appointment.Get('RequiredAttendees', attendeeList)
                  Display(?attendeeList)
              end
          else
              Message('Could not get the requested appointment, the ID may be invalid.')
          end
      end

      Do Cleanup

• Fixed oiObject.GetChild not returning True when successful when passed a string identifier for the specific child to be retrieved.

Word

• Fixed: The NewDoc method was not working when a file name was passed to the method (when a file name is passed, that file is used as the template for the new document).
• Fixed: OpenDoc not returning true (1) when the document was opened successfully.
• New documentation for the SaveAs method, including a full list of all formats for Office 2003 and earlier, and Office 2007 and later. Also includes multiple examples, and a full discussion on the various options for ensuring compatibility across versions of Word. Recommended reading!

Excel

• Fixed: SelectWorksheet not selecting the specified sheet.
• Changed: Initial optimisation and refactoring of the methods related to interaction with work sheets.

Version 3.20 Beta (12 April 2010)

General

• Added: oiObject.Kill method. This method cleans up and disposes all memory allocated for an oiObject instance.
• Added: iApplication object to each of the classes. This generic oiObject represents the application and can be used to call methods and access properties of the application associated with the OfficeInside classes, as well as get child object for that application.
• The new generic oiObject class is now functional and available for use:
  • Init - creates the object, using the passed name:
    iSheet oiObject
    ExcelBook oiExcel   ! Instance of the oiExcel class
      code
        ExcelBook.Init()
        ! Get the active sheet from an oiExcel object:
        iSheet.Init('ActiveSheet', ExcelBook.iApplication)
  • GetChild - gets a child object, such as a MailItem from a Folder or a Sheet from a Workbook.
    ! Identical in function to the code above for the Init method,
    ! just gets the child ActiveSheet from the Application
    ExcelBook.iApplication.GetChild('ActiveSheet', iSheet)
  • GetParent - retrieves the parent object.
    ! Use to retrieve a parent object of the passed object.
    iSheet.GetParent(iWorkbook)
  • GetProperty - gets the value a property of the object using the property name. For example:
    iWorkbook.GetProperty('FullName', workbookFileName) ! get the file name of the workbook
  • SetProperty - Sets the property of the object to the passed value. Example:
    iActiveSheet.SetProperty('Name', 'Accounts Nov') ! set the Name property of the active Sheet
  • CallMethod - call a method of the object. Example:
    iSelectedSheet.CallMethod('PrintPreview', oi:False) ! Print the selected sheets
• Using a generic oiObject:
  iSheet oiObject
  ExcelBook oiExcel   ! Instance of the oiExcel class
    code
      ExcelBook.Init()

      ! Get the active sheet from an oiExcel object:
      iSheet.Init('ActiveSheet', ExcelBook.iApplication)

      ! Get the PageSetup for the sheet:
      iSheet.GetChild('PageSetup', iPageSetup)

      ! A string for the center footer contents:
      centerFooter = 'My Worksheet'

      ! Set the center footer to our string:
      iPageSetup.Set('CenterFooter', centerFooter)

• Excel Editable Report Output. Resolved (Fixed) Case 870:   Blank rows and columns not being deleted
• Fixed: Potential memory leak when destroying an OfficeInside object.
• Tested OfficeInside with MS Office 2010.
• Resolved EXP file export inconsistencies, particularly for C55.
• Added a officeVersion property, which retrieves the version of Microsoft Office when the object is initialised. Note: You can get the version of Office directly by calling the GetOfficeVersion method. This can be used before the object is intialised to check for a valid version of Office - if no version of Office is installed this method returns zero, and if the version returned is less than 9 (Office 2000), then the version of Office available is too old. The versions returned are:
  • 14     Office 2010
  • 12     Office 2007
  • 11     Office 2003
  • 10     Office XP
  • 9       Office 2000
• The GetOfficeVersion method now supports all version of Office up to version 20 (future releases).
• Fixed: Incorrect icons used in the example application.
• Added: The main Demo example now allows the printer to be selected from a list when performing a mail merge to a printer. This also demonstrates the use of the new oiUtil class to fetch a list of all printers installed on the machine, as well as using the SetPrinter method to set the printer for Word
  • Notes:
    1. When using the PrintOut method the printer to use can be passed directly to the method, and SetPrinter does not need to be called.
    2. If no printer is set (for both a mail merge and when calling PrintOut), then the current printer (usually the system default) is used.
• Examples: Demo: Removed the empty Wizard procedure from the demo
• Examples: Demo: oiExcelImportWizard is now called from the button and correctly place in the procedure tree.
• Examples: Demo: The About window now demonstrates the use of the GetVersion method to display the version of Office installed. This uses the oiOffice class directly, and retrieves version without initialising any of the Office applications. Note: The version is automatically retrieved and stored in the officeVersion property of each object when a specific object is initialised.
• Examples: Demo: Main Word example - fixed the display of methods being called in the listbox (note: some methods may not display in this list as the internal method handling is being updated and improved, this will not affect functionality or Word event callbacks).
• Examples: Demo: Added Document Statistics to the "Other" menu for the main Word example.
• Examples: Demo: Added a "Unit Conversion" example to the "Other" menu for the main Word example.
• Changed: The template now checks whether %ApplicationLocalMode is defined, otherwise it assumed that the project is in DLL mode.
• Resolved (implemented): Case 1052: DLL Function to check whether Office applications are available. Can be done by calling th GetOfficeVersion provided by all the classes. If the method returns 0, then Office is not available.

Word

• Spell Checking: Changed: By default Word is now initialised when the spell checking is first called, if it has not already been initialised. This can speed up the procedure start significantly, and only intialises Word when the needed (if the spell checking functionality is not used, then Word is never initialised). The object is reused until the procedure is closed, at which point it is automatically cleaned up.
• Spell Checking: Added: Automatic initialisation and creation of the document and spell checking interfaces. These are now persistent for the lifetime of the procedure, improving performance. Cleanup is done when the procedure exits.
• Spell Checking: Fixed: When spell checking and RTF control the actual RTF code was being retrieved in certain cases (an empy RTF control, or a control that only contained whitespace). The text is not correctly retrieved.
• Note: Word 2010 appears to have an error in one of the interfaces that is causing spell checking to fail. This has been reported to Microsoft.
• Fixed: Spell checking errors and template error in C55 and C6. The spell checking has been updated and improved for all versions of Clarion.
• Resolved (fixed): Case 1660:  Spell checking GPFs on an empty RTF control.
• Resolved (implemented): Case 2212:  Spell Checking template - change to init based on the user's choice (Word is initialised when the spell checking code is first called, however the user can intialise it earlier, and the spell checking code will automatically use the intiailised instance).
• Resolved (fixed): Case 1661:  Spell checking doesn't handle compositions. Spell checking now handles string that contain compositions such as "isn't"; "wouldn't"; "it's"; "could've" and so on.
• This version includes major refactoring and a rewrite of a large portion of this class.
• Support for multiple documents. When a new document is opened or created it becomes the active document, and when a document is closed, the next available document becomes the active one. This includes documents opened by the user - calling oiWord.GetActiveDocument(true) will get the active document for use, regardless of whether OfficeInside created or opened the document or not.
• The Open, Save and SaveAs methods now use the new format by default under Office 2007 and later.
• Added: When saving a document using the default format the version of Word being used is detected and the correct format selected automatically. This can be overridden using the pFileFormat parameter.
• Added: New formats for opening and saving files.
• Added: When opening a document the native format of the document is used rather than forcing a specific format.
• Fixed: Incorrect message that there is not sufficient buffer size for replacing a word when spell checking.
• Added: Opening documents using a Password is now supported.
• Improved efficiency of the OpenDoc method.
• Added the Documents interface to the class. Will provide support for working with multiple documents simultaneously.
• Closed (Fixed) Case 1611:  FindText always returns 1, even when nothing is found
• Rewrite of the following methods to improve performance, memory usage, error handling, and improve the class structure:
  • _InitWordSelection()
  • _InitRange() - creates the range interface
  • _WrapperSelection() - handles SetSelection(); MoveLeft() etc. Will be replaced and deprecated in future versions.
  • _WrapperDocument() - handles document level options such as self.SetBackground(). Will be replaced and deprecated in future versions.
  • _KillRange()
  • _InitTables()
  • _InitInlineShapes()
  • _WrapperParagraphFormat() - will be replaced in future versions.
  • CheckSpelling_Init()
  • _WrapperStoryRanges() - will be replaced in future versions
  • _InitInlineShapes()
  • InsertPicture()
  • SaveAs()
  • Underline()
  • _WrapperWordFont() - will be replaced in future versions
  • _InitWordFont()
  • _InitPageSetup()
  • _InitSystem()
  • GetFileName()
  • CountCharacters()
  • SetSelection()
  • _WrapperTableRows()
  • Undo()
  • _WrapperDocument() - Complete re-write. Will be split into individual methods using the new interfaces, and deprecated, along with all other "wrapper" methods.
  • Redo()
  • RefreshScreen()
  • _WrapperActivePane() - will be replaced in future versions.
  • _WrapperCommandBar() - will be replaced in future versions.
  • ShowToolbar()
  • HideToolbar()
  • CountOpenDocs ()
  • PrintPreview()
  • PrintPreview(long)
  • CheckSpelling_Init()
  • SetActivePrinter()
  • CountCharacter - complete rewrite, now calls DocumentStatistics
• Rewritten and refactored to support multiple simultaneous documents, improve performance, reduce overhead etc.
  • NewDoc()
  • OpenDoc()
  • CloseDoc()
• The following methods are now obsolete and deprecated:
  • _KillApplication
  • _KillSystem
• New Methods:
  • GetDocuments - Gets the Documents interface
  • GetActiveDocument - Get the ActiveDocument interface
  • GetRange - Get the Range interface
  • GetWindow - Get the ActiveWindow interface
  • GetPane - Get the ActivePane interface
  • StoreDoc - Stores each new or opened document in the Documents queue as an oiObject
  • RemoveDoc - Removes a document from the .Documents queue, typically when it is closed.
  • ReleaseDocs - Clears the .Documents queue and releases all memory allocated.
  • GetDialogs - Get ths Dialogs interface and the Dialog interface for the File->Printers dialog (used for setting the active printer for Word).
• New Methods (general use)
  • DeleteSelection - Delete a selection
  • RefreshDocs - Refreshes the list of available documents and populates the .Documents queue with all the currently open documents.
• New Documents queue, stores all open documents as a queue of oiObjects. The documents can be switched between, manipulated, and otherwise fully accessed using the interface provided by the new oiObject class.
• Rewrote SetPrinter, which aso fixes it returning an incorrect value
• Resolved (fixed): Case 1595: GetFontNames is not working - returning an empty queue. Note: This functionality in broken in Office 2010 Beta. This has been reported to Microsoft.
• Resolved (implemented): Case 1299: DeleteSelection method - deleted the current select in Word.
• Resolved (implemented): Case 1588: Page orientation and setup, margins etc. - implemented via both the Update and PrintOut methods.
• Resolved (implemented): Case 1449: Add Documents queue that stores Document objects
• Closed (duplicate): Case 1931: Autofilter not properly implemented
• Resolved (implemented): Case 2216: Version function needs to support checking for Office 2010
• Resolved (implemented): Case 1127: SaveAs function - Save As Html saves a "Web archive" .mht (EML) file, needs an HTML option

Outlook

• Closed (Not reproducible) Case 1659: UAC breaks interaction with Outlook.
• Closed (Not reproducible) Case 1667: Appointments not all being fetched when UAC is turned on
• Resolved (Implemented) Case 373: The oioFolderItemsQ does not have date or time fields.
• Resolved (By Design) Case 1119: IMAP folders not included in the Folder list that is retrieved. This is how the Microsoft Outlook Object Model is designed.
• Resolved (Implemented) Case 516: Increase Property Size (Body field for items).
• Fixed: Problems calling the oiSendEmail() function, which was failing under newer versions of Office.

Excel

• Added: OpenWorkbook now prompts the user to select a file if the passed file name is blank or omitted. Previously calling with a blank file name would simply fail. The file name can be passed, or a blank file name can be passed, or the parameter can be omitted entirely.
• Resolved (Implemented) Case 1248: Expose additional print properties for Excel. See the PrintWorkbook() and PrintWorkSheet() methods.
• Deprecated: OpenWorkbook_LB method. The functionality is provided directly by the OpenWorkbook method.
• Resolved (Implemented) Case 1408: Expose the 'DisplayAlerts' property. See SetAlerts()
• Added: GetActiveSheet(). Creates an oiObject that represents the currently active sheet.
• Added: GetPageSetup(). Creates an oiObject that represents the PageSetup object. This contains all the Page Setup settings for the currently active worksheet.
• Resolved (Duplicate) Case 1687: Add OpenHeader and CloseHeader methods. These are exposed by the PageSetup property, which is being exposed via the GetPageSetup() method.
• Resolved (Implemented) Case 1616: Expose the Zoom property in Office Inside. Implemented via the PageSetup object.
• Resolved (Implemented) Case 1877: Page Layout Options. Implemented via the PageSetup object.
• Resolved (fixed) Case 1934: C7 compatibility for editable reports.
• Resolved (Implemented) Case 1935: Set Page Margins. Implemented via the PageSetup object.
• Resolved (Duplicate) Case 1938: Set page zoom. Implemented via the PageSetup object.
• Resolved (Fixed) Case 1985: Editable reports not working in C7 PE.
• Resolved (Duplicate): Case 1370: Expose the PageSetup object
• Resolved (Duplicate): Case 1867: Print Setup/Settings propeties/methods
• First round of refactoring and optimisation:
  • _WrapperRange - will be replaced in future releases
  • InsertRow
  • WriteToCell
  • SelectCells
  • InsertColumn
  • SetCellBackgroundColor
  • GetCellBackgroundColor
  • CountUsedRows - complete replacement, encapsulates the functionality within the method itself, and adds full error handling. Returns the number of rows that contain data, or returns -1 if an error occurs and calls the ErrorTrap() method
• Old Excel Import template now cleanly closes the document rather than try to save it (new import template coming soon)
• SaveAs method now automatically detects the version and uses the new Excel format by default for Office 2007 and later.
• Fixed: Example data - some example had old data shipped
• Updated: All the example applications have been updated, tested and improved.
• If the Excel report output fails to save, the created Excel document is then displayed to allow the user to save it to an alternate location.
• Fixed Editable Report output not calculating columns correctly when placing data.

PowerPoint

• Refactored methods and interfaces for future expansion of this class.

Version 3.15 Beta (21 January 2010)

General

• Modified template, DLLs, LIBs and linking for C7 and C7.1 compatibility.
• _ABCLinkMode_=>1 set to 0 in C7.1 and C7.0 build for the LIB compile.
• Ship pwutil.lib, and link at the project level
• Changed projects to release mode to work around broken Assert function in Clarion 7.0. Fixes errors such as: "Assertion failed on line: 1461 in file pwcom.clw when calling ReplaceText".
• Fixed: Assert messages in Clarion 7.0, as a result of the broken Assert statement in C7.0 (see above). This error only affect Clarion 7.0, it is fixed in Clarion 7.1.
• Tested build for regression in Clarion 6 in Local and Standalone modes.
• Test build for regressions in Clarion 5.5 in Local and Standalone modes.

Excel

• New: Added a SetAlerts() method to enable or disable the display of alerts. Can be set to true (1) or false (0). If alerts are disabled, then Excel will assume the default value rather than prompting the user.

Word

• Note: There is a known bug in the spell checking for RTF controls. When the control is empty, or only contains control characters (such as CR,LF pairs), the GetText method is returning the underlying RTF rather than the text itself. This will be resolved for the next release.

Outlook

• One report of the Address Book/Contacts not working in the demo application. Tested in Office 2003 and 2007 under XP, Vista and Windows 7. Note that the security settings can interfere, particularly in Office 2007. If the user has selected to disable all interaction with external applications, the functionality will not work. The default setting in Office 2007 is to prompt the user if the anti-virus solution is out of date (or not installed). The new section of the docs on Outlook Security covers this issue in detail.
• Added: Outlook Security section to the Outlook documentation (If you use Outlook, this section should be considered required reading. Ignore it at your own peril!).

Version 3.14 Beta (31 December 2009) Word

• New: The PrintOut() method now supports setting the printer using the PrinterName parameter.
• New: SetPrinter() method. Allows the printer for the current Word document to be set.
• New: SetAlerts() method allows the alert level to be set to oiw:AlertsNone(0), oiw:AlertsMessageBox(-2),  or oiw:AlertsAll(-1).

Version 3.13 Beta (30 December 2009) Excel

• Fixed: ReadCell truncating data at 255 bytes. The full 32KiB is now supported.

Version 3.12 Beta (23 December 2009)

General

• Fixed: Clarion 7.0 and 7.1 template compatibility
• Fixed: Linker problems in Clarion 7.1
• Fixed: Editable report template options causing problems in Clarion 7.1 PE as a result of template changes in Clarion 7.1 (Clarion Enterprise is unaffected).
• Fixed: Word editable report output not displaying the selection option at runtime when used with Fomin Report Builder.
• Added: Performance improvements for the editable report output

• Note: Non public pre-release versions of Clarion 7.1 prior to the office 6545 build are NOT supported, as a result of linker changes and fixes in the official 7.1 release.

Version 3.11 Beta (14 December 2009)

General

• Fixed: The Word Editable report template wasn't always providing the option to print to Word at runtime when using with Fomin Report Builder reports.

Version 3.10 Beta (03 December 2009)

General

• Deprecated: The Benchmark example is deprecated and has been removed
• Fixed: The Init() method prototype was incorrect in the Two Printers example
• Fixed: An assert firing when compiled in C7 debug mode ("assertion failed on line: 382 in file pwcom.clw")
• New: ProcessToExcel example application which demonstrated creating an Excel workbook, inserting data from a table, saving, and closing the workbook Automatically using a Process procedure.
• New: ExportBrowse example. Demonstrates creating a working, dynamically exporting all fields in a queue or a file to the workbook, and saving and closing the workbook (as well as optionally displaying it to the user). The approach used for the export can be used to export any file or queue, regardless of the fields in the queue or table.
• Update documentation, and list all the examples in the Examples section, along with descriptions of all examples.
• New editable report output templates for Word and Excel. These replace the old templates and provide improved integration with Clarion's report templates
• Editable report output support for Legacy applications
• Editable report output support for Fomin Report Builder
• Improved editable report output support for CPCS
• Improved editable report output support for other third party reporting and previewing templates
• Added: Editable reports for Excel and Word are now fully support in Legacy application.

Word

• New: ReplaceInString() method, allows one or more instances of a substring to be found and replaced in a string (does not require Word).
• Fixed: Spell Checking now fully supports Clarion 7 (fixed a GPF that could occur under C7).
• Fixed: The "Spell checking complete" message being displayed on controls that were excluded from spell checking (although no spell checking was actually performed the message was still displayed).
• Fixed: The spell checking template "exclude/include" controls options were not functioning correctly.
• New: DocumentStatistics() method with the following options:
  • oiw:StatisticCharacters: Count of characters.
  • oiw:StatisticCharactersWithSpaces: Count of characters including spaces.
  • oiw:StatisticFarEastCharacters: Count of characters for Asian languages.
  • oiw:StatisticLines: Count of lines.
  • oiw:StatisticPages: Count of pages.
  • oiw:StatisticParagraphs: Count of paragraphs.
  • oiw:StatisticWords: Count of words.

Excel

• Improved: Editable Report Output now supports a far wider variety of reports and provides intelligent positioning for even complex reports. The previous version still had problems with reports that had few "columns" near the top of the report, but had controls spread out horizontally. It was creating columns for these controls, which then offseted columns created further down, which should have been "inserted" before these existing columns, but were instead added after them. The code has been refactored to handle these cases for both rows and columns.

Outlook

• Added: A new "SimpleEmail" example that demonstrates sending a text only email using Outlook using a minimal window, and only one line of actual code.

Version 3.03 Beta (9 November 2009)

Word

• New: ReplaceInString() method, allows one or more instances of a substring to be found and replaced in a string (does not require Word, or the Init method to be called).
• New methods (methods that existed have been expanded, improved and are now fully supported by the templates):
  • SpellCheckString
  • SpellCheckHtml
  • SpellCheckRTF
  • ReplaceInString
• New callback methods:
  • GetRtfText
  • ReplaceRtfText
  • SpellWord
• New: Completely replaces Spell Checking. Provides improved spell checking for text, RTF and HTML.
• New: Replace All functionality in spell checking is now implemented
• New: Spell checking is now object based and no longer generates large amounts of code for each control on the window
• Improved spell checking performance and efficiency.
• New spell checking control template allows the controls and code to be populated onto any window
• Control template based spell checking eliminates the maintenance required by the previously source based TXA import and helper template.
• Spell checking no longer requires any other extensions - just the control template needs to be populated onto a window (or the provided utility template can be used to add the window to your application automatically).
• New spell checking is fully backward compatible. We recommend replacing the old spelling suggestions window with the new one.
• Note: If the old template is used a warning at compile time will be displayed once. This warning will not be displayed on subsequent compilations of the application.
• New: oiWord.PageSetup() method allows all page setup properties for the current document to be modified.
• Documentation updates and improvements

Version 3.01 Beta (13 October 2009)

General

• Fixed: Missing files from the installer
• Fixed: Missing Example data in the installer
• Fixed: Compile errors in C7

General

• Added: oiApiBase class provides a base class that encapsulates basic API functionality, debugging and error logging
• Added: oiUtil class for general functionality outside of the Office classes, for example listing all printers on the system and populating them into a queue. Useful with the new PrintOut methods that allows fully automated printing to any printer with no user interaction
• Added: oiUtil.EnumPrinters method populates a queue with a list of all printers installed on the system. See the new PrintOut example application.
• Added a new oiObject class. This represents any Office object, such as a mail item, workbook, worksheet, chart, mail folder, address book entry etc. This provides generic access to the methods and properties of Office objects, including those not exposed through the other OfficeInside classes.
  Some of the new methods provided by this class include:
  • GetProperty - gets the value a property of the object using the property name. For example:
    iWorkbook.GetProperty('FullName', workbookFileName) ! get the file name of the workbook
  • SetProperty - Sets the property of the object to the passed value. Example:
    iActiveSheet.SetProperty('Name', 'Accounts Nov') ! set the Name property of the active Sheet
  • CallMethod - call a method of the object. Example:
    iSelectedSheet.CallMethod('PrintPreview', oi:False) ! Print the selected sheets
  • Init - creates the object, using the passed name:
    iSheet.Init('ActiveSheet', ExcelBook.iApplication)  ! Get the active sheet from an oiExcel object
    iSheet.GetChild('PageSetup', iPageSetup)  ! Get the PageSetup for the sheet
    centerFooter = 'My Worksheet' ! A string for the center footer contents
    iPageSetup.SetProperty('CenterFooter', centerFooter) ! Set the center footer to our string
  • GetChild - gets a child object, such as a MailItem from a Folder or a Sheet from a Workbook.
  • GetParent - retrieves the parent object.
• Added: A new PrintOut example application that demonstrates using the new printing options for both Word and Excel.
• Entirely new Report Output engine.
  • The new Editable Report output engine for Excel extends the output abilities and now creates well formatted Excel spreadsheet without requiring specific alignment and sizing of controls.
  • Intelligent column and row checking allows controls to be automatically assigned to the correct column and row without specific alignment requirement
  • Improved report processing speed (additional performance improvements are coming in future releases).

Word

• Fixed/Improved: All the unit conversion methods (PicasToPoints, PixelsToPoints, PointsToCentimeters etc.) now take the correct parameter types, and return using appropriate types rather than passing and returning strings.
• Improved: All unit conversion methods are now optimized and no longer use a wrapper method.
• Added: Completed PointsToPixels and PixelsToPoints methods.
• Fixed: The PrintOut method is now fully functional and allows completely automated printing without any user interaction. See the PrintOut example application, which also demonstrates the use of the new
• Added: Event handling functions (Note that these are not tested or supported in this release).
  • oiWord.EventStartup( )
  • oiWord.EventQuit( )
  • oiWord.EventDocumentChange( )
  • oiWord.EventDocumentOpen( )
  • oiWord.EventDocumentBeforeClose( )
  • oiWord.EventDocumentBeforePrint( )
  • oiWord.EventDocumentBeforeSave( )
  • oiWord.EventNewDocument( )
  • oiWord.EventWindowActivate( )
  • oiWord.EventWindowDeactivate( )
  • oiWord.EventWindowSelectionChange( )
  • oiWord.EventWindowBeforeRightClick( )
  • oiWord.EventWindowBeforeDoubleClick( )
  • oiWord.EventEPostagePropertyDialog( )
  • oiWord.EventEPostageInsert( )
  • oiWord.EventMailMergeAfterMerge( )
  • oiWord.EventMailMergeAfterRecordMerge( )
  • oiWord.EventMailMergeBeforeMerge( )
  • oiWord.EventMailMergeBeforeRecordMerge( )
  • oiWord.EventMailMergeDataSourceLoad( )
  • oiWord.EventMailMergeDataSourceValidate( )
  • oiWord.EventMailMergeWizardSendToCustom( )
  • oiWord.EventMailMergeWizardStateChange( )
  • oiWord.EventWindowSize( )
  • oiWord. EventXMLSelectionChange( )
  • oiWord.EventXMLValidation( )
  • oiWord.ErrorEventDocumentSync( )
  • oiWord. EventEPostageInsertEx( )
  • oiWord.EventMailMergeDataSourceValidate2( )
  • oiWord.EventUnknown( )

Excel

• Added PrintSheet method to print the current sheet and allow the page range and number of copies to be specified.
• Added PrintWorkbook method to print the current workbook and allow the page range and number of copies to be specified.
• Added _PrintOut method that handles sheet and workbooks printing (typically not called directly)
• Added GetActiveWorkbook method to retrieve and oiObject that represents the currently active Workbook object. This may not be the workbook that relates the the oiExcel object, it is whichever workbook is currently active in Excel. This allows the Workbook to be interacted with using the generic access methods provided.
• Added GetCurrentSheet method
• Added GetActiveSheet method
• Added SetActivePrinter method (not currently supported)
• Added GetActivePrinter method
• Added GetWorksheets method

Version 2.77 (20 July 2009)

General

• Fixed: Fixed incorrect release dates and version number in the History doc.
• Fixed: Error in the C7 LIB that caused FM3 to not upgrade files.

Excel

• Fixed: CloseWorkbook method returning 0 incorrectly when no parameter was passed to specify the behaviour (the workbook was correctly closed, but the return value was incorrect).
• Fixed: RenameWorksheet()

Version 2.76 (14 July 2009)

General

• Fixed: Fixed incorrect release date for 2.74 in the History document.
• Fixed: Compatibility problems with OfficeInside and editable reports between various versions of Clarion
• Fixed: Long standing issue with the editable report classes and a potential conflict with FM3, which prevented files from upgrading in some cases.
• Changed: The Editable Report classes now ship as source code and are added at the project level. The underlying classes are contained in _oiABPROI.clw and oiABPROI.inc and the ReportGenerator interface is defined in oiABPROI.clw.

Word

• Fixed: Fixed the SpaceBefore and SpaceAfter options of the SetParagraphFormatting not working correctly.

Version 2.74 (06 July 2009)

General

• Fixed: OfficeInside is now compatible with Clarion 7 is both Local and Standalone modes.

Excel

• Fixed: The oiExcel.ExcelImport() method was not correctly retrieving the filename from the user when no filename is passed. The method can be called with a blank file name, in order to prompt the user for the file to import:
  ExcelDoc.ExcelImport ('', ?Progress, numColumns, startRow)
• Added: Equates for passing to oiExcel.CloseWorkbook( ) to determine the save behaviour:
  oix:Default  equate(1)
  oix:DontSave equate(2)
  oix:Save     equate(3)
• Fixed: The oiExcel.ExcelImport() method was prompting to save the document before closing.
• Fixed: The oiExcel.ExcelImport() method stopping before importing all rows if the startRow parameter was passed.

Version 2.74 (19 June 2009)

Outlook

• Fixed: The Contact HomeAddressStreet property was not being updated when the UpdateContact method was called to update the entire contact from a group (updating the individual property worked correctly, as did retrieving the value from the Outlook contact).

Version 2.73 (15 June 2009)

General

• Fixed a compile error when using the Editable Report templates in current build of C7 (5675). The SoftVelocity ReportGenerator interface changed in this release (ProcessText reverted to the C6 protoype). This resolves the "No matching prototype available" error in oiABPROI.clw on compilation.

Version 2.72 (11 June 2009)

General

• Documentation improvements, new navigation and menu system etc.
• Changed: The oiBase.NewObject() method now requires the passed pItem to have been allocated before calling it (previously it allowed a null pointer to be passed, which would result in errors).
• Fixed: Memory leak in the oiExcel object because of handles to interfaces not being freed.
• Fixed a problem with methods ignoring calls because of an incorrect flag being set on intialisation (prevented Mail Merge from working in 2.71).

Excel

• Added: New oiExcel.Replace procedure to provide additional find and replace parameters (string pFind, string pReplace lookAt=0 searchOrder=1 lookAt=2 matchCase=0 matchByte=0).
• Fixed: ReplaceText (): Changed internal calling to not pass the last two parameters (searchFormat and replaceFormat), neither of which was used. Also corrected one of the parameters being passed incorrectly.
• Changed: ReplaceText(): now returns True for success and False for failure.
• Changed: ReplaceText(): The replacement string may be an empty string, it is perfectly legal to replace a string with nothing (removing it)
• Added: New internal method GetCells() returns the Cells range object.
• Added: In Progress. Please do NOT use this method in this release. New Find() method for returning the position of a specific string of text. Supports searching in either direction, case sensitive or insensitive searches, searching for exact matches or the search phrase within the string etc. Returns the cell that the match was found at.
• Added: oiExcel.DisplayAlerts() method allows the display of messages from Excel to be enabled or disabled
• Added: oiExcel.EnableEvents() procedure (currently this is internal)
• Added: oiBase.ToCstring(*string s) method. Copies the contents passed string to a new cstring and returns a pointer to the new cstring.
• Added: oiExcel.RunAutoMacros() method that allows the auto macros built into a file to be run (Auto_Activate, Auto_Close, Auto_Deactivate, and Auto_Open macros)
• Added: oiExcel.GetWorkbooks().
• Added: oiExcel.GetActiveWindow().
• Deprecated: CountWorkbooks_LB()
• Deprecated: NewWorkbook_LB()

Version 2.71 (10 April 2009)

General

• C7 support update for Multi-Proj.
• C7 support - template includes the oiABPROI.INC, Fomin support, Report target selector, WOWordReporterDeclaration, legacy class generation when necessary.
• C7 support - uses the additional parameter in the implemented IReportGenerator.ProcessString class in C7.

Outlook

• Outlook (UpdateContact) - Updated to support all of the properties, optimised the update code and added a new GetContactPropertyName method to return the name when passed the long value for a field.

Version 2.69 (11 September 2008)

General

• Clarion 7 compatible release.
• Updated documentation and reformatted the oiExcel class documentation for improved clarity and consistency.

Word

• Added/Fixed: The FindText() method now returns 1 when the text that was search for is found, and zero if it is not found, which is the documented behaviour. The method now checks the Found property of the Find member of the Selection object to determine whether the search was actually successful. Previously the FindText() method was actually returning whether or not execution was successful, and the return value was not related to the result of the Find.
• Fixed: The MailMergeSetDataSource was always returning 0, even when successful. It now returns 1 for success and 0 for failure.

Excel

• Added: GetCellBackgroundColor() method returns the background color of a cell or range of cells. Can be called as:
  curColor = oiExcel.GetCellbackgroundColor('', '')    ! Fetch the color for the currently selected cells
  curColor = oiExcel.GetCellbackgroundColor('A1', '')  ! Fetch the color for a specific cell
  curColor = oiExcel.GetCellbackgroundColor('D1', 'E7')! Fetch the color for the range of cells specified

Version 2.68 (16 July 2008)

Excel

• Added: Documentation Color Management in Excel and Cell Formatting. This is recommended reading.
• Fixed: A missing property in the Contact groups in the documentation.

General

• Documentation updates.
• Website pages were not correctly reflecting the version.

Version 2.67 (02 July 2008) Word

• Changed: Removed the temporary InitSite method.

General

• Fixed: Incorrect style sheet in some of the documentation files.
• Added: The Microsoft Office Compatibility pack is now supported. Unfortunately the compatibility pack causes the incorrect version of Office to be reported, which was causing OfficeInside to specify the the Office 2007 format for spreadsheets, which the compatibility pack would be create, and convert as if it was an older binary Excel document, causing the document o become corrupt. This has been resolved in this release.
• Added: Error handling and logging to the email sending for Outlook.
• Important: With Outlook 2007 the Outlook Security model has changed. There are now three settings (accessible via Tools -> Trust Centre -> Programmatic Access):
  • "Warn me about suspicious activity when my antivirus software is inactive or out of date (recommended)".
    This setting does not appear to function correctly when most setups. Presumably it is meant to allow the antivirus software to determine whether access is allowed or not. Instead in every configuration tested it simply blocks all access, which means that sending mail will fail because the Recipient object cannot be retrieved. Outlook provides no indication of the failure, or the reason for it.
  • "Always warn me about suspicious activity".
    This setting operates in the same manner as the security model in Outlook 2003, except that it introduces an even more onerous warning dialog box on mail sending. First the user is prompted to allow access to 1, 5 or 10 minutes, then when an email is sent a warning dialogue is displayed (because the first dialog is actually a security flaw). The second dialog does not allow the user to continue immediately, but instead displays a progress bar for a few seconds before the button can be pressed. This means that utilities such as "ClickYes" can no longer be used.
  • "Never warn me about suspicious activity".
    This setting allows all applications access, much like in Office 2000 and XP.
  • Unfortunately all three of the settings are essentially useless - either they are overly onerous for the user, or they provide no protection against malicious software (even the option to always warn of suspicious activity can be overridden by malicious software). One solution to this is to install the free Advanced Security for Outlook from MAPILabs (http://www.mapilab.com/outlook/security/). This allows the user to choose whether an application is trusted when it tries to access Outlook. This approach only requires the user to allow (or deny) an application access once, which provides good protection, without any burden on the end user.

Version 2.66 (11 June 2008) Word

• Added: Additional errortrapping and error handling code for document and object creation.
• Changed: Changed the way that the Tables object was retrieved to improve reliability when processing multiple documents in a row.

General

• Fixed: The Clarion 5.5 DLL that shipped with the 2.65 release was the 2.64 version.

Version 2.65 (4 June 2008) Word

• Added: [Beta] New PrintOut method that exposes all the print settings available in Word. This uses the new
  • Background (optional). True to have the macro continue while Microsoft Word prints the document.
  • pAppend (optional). True to append the specified document to the file name specified by the OutputFileName argument. False to overwrite the contents of OutputFileName.
  • pRange (optional). The page range. Can be one of the following WdPrintOutRange constants: wdPrintAllDocument, wdPrintCurrentPage, wdPrintFromTo, wdPrintRangeOfPages, or wdPrintSelection.
  • OutputFileName (optional). If PrintToFile is True, this argument specifies the path and file name of the output file.
  • pFrom (optional). The starting page number when Range is set to wdPrintFromTo.
  • pTo (optional). The ending page number when Range is set to wdPrintFromTo.
  • Item (optional). The item to be printed. Can be one of the following WdPrintOutItem constants: wdPrintAutoTextEntries, wdPrintComments, wdPrintDocumentContent, wdPrintKeyAssignments, wdPrintProperties, or wdPrintStyles.
  • Copies (optional). The number of copies to be printed.
  • Pages (optional). The page numbers and page ranges to be printed, separated by commas. For example, "2, 6-10" prints page 2 and pages 6 through 10.
  • PageType (optional). The type of pages to be printed. Can be one of the following WdPrintOutPages constants: wdPrintAllPages, wdPrintEvenPagesOnly, or wdPrintOddPagesOnly.
  • PrintToFile (optional). True to send printer instructions to a file. Make sure to specify a file name with OutputFileName.
  • Collate (optional). When printing multiple copies of a document, True to print all pages of the document before printing the next copy.
  • FileName (optional). The path and file name of the document to be printed. If this argument is omitted, Word prints the active document. Available only with the Application object.
  • ActivePrinterMacGX (optional). This argument is available only in Microsoft Office 98 Macintosh Edition. For additional information about this argument, consult the language reference Help included with Microsoft Office 98 Macintosh Edition.
  • ManualDuplexPrint (optional). True to print a two-sided document on a printer without a duplex printing kit. If this argument is True, the PrintBackground and PrintReverse properties are ignored. Use the PrintOddPagesInAscendingOrder and PrintEvenPagesInAscendingOrder properties to control the output during manual duplex printing. This argument may not be available to you, depending on the language support (U.S. English, for example) that you’ve selected or installed.
  • PrintZoomColumn (optional). The number of pages you want Word to fit horizontally on one page. Can be 1, 2, 3, or 4. Use with the PrintZoomRow argument to print multiple pages on a single sheet.
  • PrintZoomRow (optional) . The number of pages you want Word to fit vertically on one page. Can be 1, 2, or 4. Use with the PrintZoomColumn argument to print multiple pages on a single sheet.
  • PrintZoomWidth (optional). The width to which you want Word to scale printed pages, in twips (20 twips = 1 point; 72 points = 1 inch).
  • PrintZoomHeight (optional). The height to which you want Word to scale printed pages, in twips (20 twips = 1 point; 72 points = 1 inch).
• Added: [Beta] new task insert and update properties for use with the InsertTask, UpdateTask and GetTask/GetTaskQ methods:
  • oio:TaskCategories equate(13)
  • oio:TaskCompanies equate(14)
  • oio:TaskComplete equate(15)
  • oio:TaskIsConflict equate(16) ! read only
  • oio:TaskDateCompleted equate(17)
  • oio:TaskTimeCompleted equate(18)
  • oio:TaskIsRecurring equate(19) ! read only
  • oio:TaskNoAging equate(20)
  • oio:TaskOwner equate(21)
  • oio:TaskPercentComplete equate(22)
  • oio:TaskSize equate(23) ! size in bytes, read only
  • oio:TaskStatus equate(24)
  • oio:TaskStatusOnCompletionRecipients equate(25) ! recipients who will receive notification on completion
  • oio:TaskStatusUpdateRecipients equate(26) ! recipients who will receive notification when the task is updated
  • oio:TaskTeamTask equate(27) ! set to true if this is a team task
  • oio:TaskTotalWork equate(28)
  • oio:TaskUnRead equate(29)

General

• Documentation Updates and improvements
• Internal class additions and cleanup, new generic COM classes and access methods
• New internal generic Get/Set and Call methods

Version 2.64 (04 April 2008) Excel

• Added: GetFileName() method that returns the name and path of the file on disk that is currently open.
• Changed: The ReadCell method now supports up to 4096 characters rather than 255 characters. This limitation will be removed in a future release.
• Added: The .excelFileName property to the Excel editable report class. This stores the file name that Excel returned once the file is saved.

Word

• Added: GetFileName() method that returns the name and path of the file on disk that is currently open.
• Fixed: Editable Report: Removed an extraneous call to Update() to change the application visibility after an editable report was created, but the application has already been closed by the Kill() and the file opened (if chosen) in a new instance using ShellExecute.
• Added: The .wordFileName property to the Word editable report class. This stores the file name that Word returned once the file is saved.
• [Editable Reports] Added: If the FileName is blank for the report output then the user is prompted for a file name automatically.

General

• Note: There is an issue with compatibility with FileExplorer in Clarion 5.5 when in Local Mode (duplicate symbol errors). This is not an issue with Clarion 6 or 7 and only occurs in Local Mode in Clarion 5.5.
• Fixed: the csWord.ico and csExcel.ico icons were not always being linked into the project automatically for Editable Report use with the TargetSelector.
• Added: Multi-Proj support for automatically including required icons in the project.
• [Editable Reports] Fixed: The Excel and Word Editable report now uses the new excelFileName/wordFileName property to ensure the correct file name is always opened.
• [Editable Reports] Fixed:Removed an extraneous call to Update() to change the application visibility after an editable report was created, but the application has already been closed by the Kill() and the file opened (if chosen) in a new instance using ShellExecute.
• [Editalbe Reports] Added: Error handling and user information messages.
• Right Reports Integrations - CapeSoft Right Reports now supports outputting reports to fully editable Word and Excel documents using OfficeInside.
• General documentation cleanup and improvements.

Outlook

• Fixed: The DateReceived and TimeReceived properties contents were reversed when retrieving the list of messages.
• Added: SaveAs() method that allows the document to be saved to disk as a the following formats:
  • Microsoft Office Word format (.doc)
  • HTML format (.html)
  • iCal format (.ics)
  • MIME HTML format (.mht)
  • Outlook message format (.msg)
  • Outlook Unicode message format (.msg)
  • Rich Text format (.rtf)
  • Microsoft Office Outlook template (.oft)
  • Text format (.txt)
  • VCal format (.vcs)
  • VCard format (.vcf)

Version 2.63 (02 January 2008) Excel

• Added: ImportSetup() and ImportComplete() callback methods to allow the document to be modified before and after the actual import when using the ImportExcel() method.
• Fixed: The Report To Excel template was displaying a prompt to save the current sheet when used in versions of Office prior to 2007. The new version now supports all version of Office and correctly determines the version and saves the document appropriately.
• Added: Code for Excel and Word editable reports to check the version of Office being used do the file saving appropriately. Note: It is recommended that the file name is specified without a file extension, this will allow OfficeInside and the Office application to set the correct file extension (for example either .XLS or .XLSX).

General

• Additional documentation updates, converted the bulk of the documentation to using style sheets, removed inline and outdated attributes, reduced the document sizes, added new method documentation and improved existing documentation with full parameter lists and descriptions, examples etc.

Version 2.62 (11 November 2007) Outlook

• Added a new GetEmailBody method to the Outlook object that is does not limit the size of the email body fetched, and returns the size required if the passed string reference is not large enough and the data has been truncated. The old method has a limit of 20,000 characters. This is the method that is now called in the example application.

Version 2.61 (17 October 2007) General

• Fixed the GetOfficeVersion function which was returning the incorrect version of Office for versions prior to Office 2007. This was causing a problem in SendTo.

Version 2.60 (04 October 2007) General

• Fixed the editable reports example and removed an unnecessary Message() statement, also added both Word and Excel functionality to both examples. This should have been fixed in the previous release but the incorrect example was fixed.
• Closed (cannot reproduce): Case 1582: Office Inside not working with Office 2003 SBE. OfficeInside has been tested using Office 2003 SBE under both Windows XP and Vista without any problems.
• Added: More documentation updates, fixed missing links in the new method listing, updated documentation for method, converted documentation to all CSS for styling to improve consistency and speed (reduced the page size).
• Added a GetOfficeVersion() method that returns the version of Office installed. This is particularly useful for determining whether Office 2007 (12) is installed and hence the default document format being used (.xlsx, .docx etc.)

Word

• Confirmed Behaviour: Case 1486: ReplaceText() has a 256 character limit in Word. This is an intrinsic limitation of MS Word, not of OfficeInside. The workaround is to use the Find method to find and select the text to replace, and then use the InsertText to insert text if more than 256 characters are needed. This has been documented for the ReplaceText method, along with the workarounds (such as putting your large string on the clipboard and calling MyWord.ReplaceText('LookFor', '^c', true). The 2-character string '^c' will be interpreted by Word as the Paste command.
• Fixed: Case 1367: GotoEndOfDoc doesn’t go to last character. The new GotoItem method that this calls fixes the various bugs and problems that existed with this method. The GotoItem can be use to go to the last line in the document, which will actually also go to the end of the document (selection moves to after the last line). Similarly going to the first line goes to the start of the first line (the beginning of the document).
• Fixed: Case 1366: GetFontSize returning invalid result - the GetFontSize method was returning a large integer rather than the correct font size.

Excel

• Added: Support for saving to the new XLSX format for the editable report templates. If now uses the default format specified by Excel, which ensures that the Compatibility dialog box is not displayed. It is recommended that you do not specify the file extension when specifying the file name, which allows Excel to pick the correct file extension based on the format used.

Version 2.50 (12 September 2007) General

• Fixed the Editable Report templates for Word and Excel, they were not sharing the same TargetSelector object unless it was specified manually and with some configurations it was possible to have two independent TargetSelectors declared in a single procedure.
• More documentation updates for Word and Excel.
• Note: For the Word and Excel editable reports in Legacy you must have at least one of the SV report output templates added. For ABC this limitation does not apply. Full Legacy support will be added in a future release to remove this limitation.

Word

• Added: Two new methods for AutoFormat support for tables. This allows one of the built-in tables styles in Word to be applied to any table automatically. This also solves the problem under Word 2002 where an auto style is selected as default and that style is applied to any tables inserted. See the oiWord.TableAutoFormat() and oiWord.TableUpdateAutoFormat() method for more information.
• Added Auto Formatting support to the example application for tables, support all of the around 30 different styles.
• Closed: Case 1583: Cannot reproduce in the current build. oiWord.TableSetCellBold setting the style for the whole column. This is not reproducible, using either the oiWord.TableSetCellBold() method or the normal methods for setting the current selection to Bold, Italic etc. Also tested to ensure that the Toggle commands work as well as On/Off for styles. Test with bold, italic, underlined and combinations.
• Added: New FindText() method search for a string and selects the next instance found, allowing each instance of a string to be found and modified (the style changed, or the actual string changed etc.).
• Fixed: Case 1368: GotoItem method not working. This method has been completely replaced and now works for all of the options available. Also note that this method now works as expected, so a number of workarounds are no longer needed. See the new oiWord.GotoItem() documentation for more information.
• Confirmed Behaviour: Case 1486: ReplaceText() has a 256 character limit in Word. This is an intrinsic limitation of MS Word, not of OfficeInside. The workaround is to use the Find method to find and select the text to replace, and then use the InsertText to insert text if more than 256 characters are needed. This will be documented for the ReplaceText method.

Excel

• Closed: Case 1478: Cannot reproduce in the current build: SetCellFormat does not appear to be working fully. Test all possible cell formatting options, along with a large number of combinations. All are working correctly.

Version 2.40 (10 September 2007) General

• Added a Clarion 7 build.
• New documentation and changes to the existing documentation. All method, properties and data types for Word and Excel are being documented and the documentation completely overhauled, in line with the new Outlook documentation.
• Fixed invalid tags and attributes in documentation, added accessibility, fixed non html encoded characters etc.
• Changed and Fixed the RecentFiles classes. They are now initialised only for Word and Excel (PowerPoint can also be made available) and they correctly list everything the the Recent Files list for both applications. The list and objects are initialised when the object is, and the list is available as soon as the application has started (directly after the call to the Init() method returns).
• Added a RecentFiles tab to both the Excel and Word examples that displays the Recent File list for each application.
• Major cleanup of the documentation, all documentation will be moved to XHTML 1.0 Strict, and use CSS for formatting. This will improve load performance, accessibility and consistency. A large number of errors, formatting problems and code issues have been fixed.
• Added a new section to the documentation indicating how to dynamically create OfficeInside objects using the New command. Important: If you New an OfficeInside object you must set the .disabled property to 1 before the call to the Init method or the call to Init() will not work, and subsequent calls to the methods of the object will not work.

Word

• Fixed the RecentFiles list, it was not returning the list of recent files due to an initialisation error.
• Note: Event handling is currently being worked on, it has not been enabled since OfficeInside moved to late bound in 1.40 Beta. Currently event handling is only working for Outlook.
• Changed: The oiWord.Update() method. The Option parameter was optional, but required in order for any code to execute. It is not an optional parameter and is no longer passed as such.
• Fixed: Case 1561: Opening and closing two instance of Word on two threads produces a normal.dot error. Can no longer reproduce this in the current release of OfficeInside.
• Fixed: Case 1470: TableSetInsideBordersLineStyle equates were incorrect and setting the style resulted in the style being set to the next one in the style list.
• Fixed: Case 1560: TableSetOutsideBordersLineStyle was not working at all, it is now correctly setting the table borders.
• Added: Case 1404: Add support for Document Protection. You can now Protect and Unprotect any document, including choosing the type of protect (read only, edit comments only, edit form fields only, make revisions only, or no protection). See the oiWord.Protect() and oiWord.Unprotect() method. A password is used if specified.

Excel

• New methods to for importing Excel files. Replaces the old ImportXLSFile() method. The new method is ExcelImport() and calls the new TakeImportRecord() callback method. No longer has any limitation on the number of columns imported, any number of columns can be imported.
• New ColumnName() method replaces the old GetColumnAddressFromColumnNumber() method removes the 26 column limit - column numbers up to 450,000 are now supported making this method quite future proof (Excel 2007 supports 16K columns and earlier versions supported 255 columns). The old method is deprecated, but will still be supported and simply calls the new ColumnName() method.
• Important: If you are using the 'Import XLS To TPS' control template (now called 'Import and Excel File') then you must move your code for processing each record from the old ImportXLSFile_TakeRecord() method to the new TakeImportRecord() method. Also note that instead of each column being passed as a parameter the columns are now passed using a queue.
• Fixed the RecentFiles list, it was not returning the list of recent files due to an initialisation error.
• New alignment options for oiExcel.SetCellAlignment:
  • oix:WrapText
  • oix:HorizontalAlignment
  • oix:VerticalAlignmentszMemberof
  • oix:Indent
  • oix:ShrinkToFit
  • oix:TextDirection
  • oix:Orientation
• In addition alignment equates for each of the options was added (see the SetCellAlignment() documentation)
• New documentation for SetPaletteColor() and GetPaletteColor(), including three examples, and an example of two complete procedures for implementing local color palette management. Fully documented how Excel uses colors and the difference between passing clarion color equates and actual color values using the oiExcel.InterpretClarionColorEquates property.
• SetCellNumberFormat() now supports any format and picture that Excel supports, also fully documented how to create custom pictures and formatting, and to use Excel to generate a picture for any possible format needed.


Outlook

• Added: New properties to the oioFolderItemsQType. This queue is used to store the contents of the folder in Outlook. The following properties are now available when using the oiOutlook.GetMailItemsQ() method. Note that the oioFolderItemsQType has changed to reflect the new properties. If you are using your own manually declared queues rather than the types provided by OfficeInside you will need to update your queue declaration. Please note that this is strongly not recommended.
  • Categories
  • Companies
  • FlagRequest
  • Importance
  • IsMarkedAsTask
  • LastModificationTime
  • LastModificationDate
  • ReceivedByName
  • ReceivedTime
  • ReceivedDate
  • ReplyRecipientNames
  • SentOnBehalfOfName
  • UnRead
• Fixed: Case 823: Address Book reading GPFs with more than 350 contacts. This error cannot be reproduced in the current release, even with far more than 350 contacts
• Fixed: Case 824: Start Date and Start Time not read from Outlook when reading Tasks
• Added: New properties when reading Tasks to the oioTasksQType1 and oioTaskProperties structures (Writing to these properties will be supported in the next release.):
  • Categories
  • Companies
  • Complete
  • IsConflict
  • DateCompleted
  • TimeCompleted
  • IsRecurring
  • NoAging
  • Owner
  • PercentComplete
  • Size
  • Status
  • StatusOnCompletionRecipients
  • StatusUpdateRecipientsTeamTask
  • TotalWork
  • UnRead

Version 2.36 (23 July 2007) General

• Fixed: Compile error (unresolved external) in C55. The DLL for C55 was not correctly compiled, and an old DLL was included in the install.

Version 2.35 (11 July 2007) General

• Documented a number of DLL functions that can be called from anywhere within an application using OfficeInside (no object needs to be instantiated to call these functions). See the DLL Functions section.
• Exposed the oiBaseToDec() and oiDecToBase() DLL functions.

Version 2.34 (06 July 2007) General

• When using the Excel.dontCloseOnKill or the Word.dontCloseOnKill option the instance of Word or Excel is now automatically made visible and the display refreshed (and automatic display refreshing enabled if it was disabled).
• Corrected the dates in the History for all releases in 2007 (they were listed as 2006).
• Updated the Editable Reports example. Clarified the options, redid window layout, provided new instructions etc. The example now demonstrates the different options setting the report target. The hand code required will be moved to template options.
• Added support for Multi-Proj

• Updated documentation for the ScreenRefresh() method.
• New editable report template, generates all code needed, supports other report generators (such as those provided by SoftVelocity), allows the user target selection dialog box to be controlled etc.

Excel

• New editable report template, generates all code needed, supports other report generators (such as those provided by SoftVelocity), allows the user target selection dialog box to be controlled etc.
• New SaveAs method and documentation, now support specifying a file format to save the file as, which is useful for ensuring that a standard XLS file is saved with Office 2007, and ensuring that the Compatibility dialog is not displayed.

Version 2.33 (07 February 2007) General

• The template now generates return values for method declarations that return values and correctly returns the parent's return value by default. Solves the "Function did not return a result" compiler warnings.
• Installer is now cryptographically signed by Capesoft Software. Ensures the validity of the installer and avoids the "unsigned file" security warning. Also allows the installer to run correctly under Windows Vista.

Version 2.32 (07 February 2007) General

• Fixed the dontCloseOnKill option for use with Word and Excel, it was allowing Word and Excel to close when Kill() was called and it had been set to a non zero value.

Version 2.31 (06 February 2007) General

• Updated documentation to reflect newly added methods for spell checking etc. SpellCheckString, SpellCheckHtml, SpellWord. These method will be used to clean up the template generated spell checking. In addition they provide improved support and functionality.
• Added example code using SpellCheckString and SpellCheckHtml, which show how the methods work, as well as providing an example of spell checking a FileExplorer control.
• General documentation update (ongoing) to document every method and property, add examples for every method, document all parameters, return values and add cross referencing!
• New Properties sections added to Word and Excel docs, and new Methods tables added.

Version 2.30 (02 February 2007) General

• New Office01.tpw for handling classes and objects, maintains backward compatability while supporting all possible parameters etc.
• Fixed template bug that was not generating parent called with pointer to typed queues corrected.
• Template: Added support for additional data types in the method declarations.
• Update the template that generates object and method declarations, and fixed a number of small issues.

Excel

• Documented the two templates to import from Excel. See the Import From Excel templates section.
• Udpated document, new example code for WriteToCell (shows how to export a table to an Excel file), clean up documentation example code, added syntax highlighting etc. Documentation will be overhauled as the Outlook docs have already been.
• New section in the documentation on class properties.
• New dontCloseOnKill property allows the OfficeInside object to be killed while leaving Excel open.

Word

• New SpellChecking methods.
• New method to check the spelling of all words in a string and to encapsulate spelling (CheckSpelling).
• Add a CheckSpellingHtml method to allow HTML to be spell checked.
• Added support for punctuation to the spell checker so that additional punctuation is not incorrectly determined as part of the word.
• Optimised spell checked and improve process speed of splitting the string into words, removing punctuation etc.
• Added support for ignoring URL Encoded characters in HTML.
• Added support for ignoring HTML Escape code such as &nbsp;
• Additional documentation on Spell Checking and RTF controls, new FAQs, links in the docs and cross referencing etc.
• New dontCloseOnKill property allows the OfficeInside object to be killed while leaving Word open.

Version 2.21 (23 January 2007) Excel

• Fixed the PrintMe() method wich stopped working the the previous release.

Version 2.20 (16 January 2007) Word

• Fixed the MailMerge example in the Clarion 6 Demo, now uses a CSV file, fixed issues with dialog boxes displaying and problems reading the data from the file etc
• Case 1126: oiWord.InsertTable() fails when too many rows are specified (stops editable reports working):
  Fixed this using the Table.Rows.Add() method. Now the Tables.Add() call always adds a single row table, and Table.Rows.Add()is called in a loop to add the rest of the rows. No real speed difference and there is now no limitation on the number of rows being added. Although the MS Documentation for the Add() method of the Tables Collection seems to indicate that there is no limit to the number of added rows(other than the 32 bit signed integer being passed), all the examples provided seem to use the Table.Rows.Add() method in a loop, indicating that this appears to be a known(and ignored) behavior.
• Updated spell checking templates, fixed a potential problem with C55 and spell checking with RTF controls, where they were spell checked before any other controls.
• Created new C55 and C6 specific examples for spell checking, show the two different approach needed for RTF controls in the two different version.
• Added SetScreenUpdating() and ScreenRefresh() methods to allow screen updating to be turned off when writing data to Word (provides a small performance improvement) and ScreenRefresh() allows the screen to be refreshed manually.
• Updated documentation and began documentation rewrite.

Outlook

• Modified the Address Book example to use a queue declared in the data section. Although it is recommended that you use the data types provided for Contacts, Tasks, Appointments, Folders and Messages, the Clarion listbox editor does not allow you to populate the fields easily, and so to make the example easily modifiable we have opted to declare the queue as local data.

Excel

• Began rewrite of docs. This will be a full rewrite as has been done with the Outlook docs
• New Methods:
  • SetCalculations: Allows automatic calculation of each inserted or edited cell in Excel to be turned off. This can dramatically increase the speed of writing large numbers of cells to Excel, and once complete automatic calculation can be turned back on using the same method.
  • Calculate: Forces the values of all formulas in all open workbooks to be calculated. Useful if SetCalculations has turned off automatic cell value calculation and the values need to be calculated at some point.
  • SetScreenUpdating:Allows screen updating to be turned off and on in Excel. This can also dramatically improve performance when inserting large numbers of cells.
• The new methods for optimisation have been implemented in the editable report templates etc. to improve performance. This has provided a small improvement in output speed to Word, and a very large performance improvement in outputting to Excel (in some cases as much as a hundred times faster).

Other

• Added support for the Recent Files classes to the demo application
• Global and Local templates: cleaned up tabs, moved overlapping text, added descriptions to tabs, made RTF info version specific for C55/C6 etc.
• New utility functions:
  • oiDecToBase: Converts from a decimal (base 10) to any other base, for example Hexidecimal (base 16), binary (base2) etc.
  • oiBaseToDec: Converts from any base to a decimal number. For example convert Hexidecimal or binary to decimal.
• New Classes for all the applications representing the Recently Used Files objects:
  • oiRecentFiles: Stores a list of recent files for all of the Office applications (Word, Excel, Powerpoint and Outlook). This class is automatically initialised when the main object is, and filled with a list of recent files, which can then be accessed by looping through the queue. The class also contains methods to refresh the queue, delete files, open files etc.
  • oiRecentFile: Class used by the RecentFiles class, and represents an individual file in the list. This class will typically not be accessed directly.
• New oiBase class that the original Office Inside classes inherit from, as well as the new child classes (such as RecentFiles). The oiBase class provides NewObject, CallMethod, GetProperty and SetProperty methods, and neatly encapsulates access to the properties and methods of the COM objects encapsulated by Office Inside. It is intended to also provide an interface for exposing COM objects that have not otherwise been exposed by Office Inside.
• Moved all functionality into the C55 compatible demo application. Functionality will no longer be split between C55 and C6 in the main Demo. For features that differ in C55 and C6 (or like editable report are only available in C6) separate examples will be include.
• Moved editable reports to a separate example.
• Editable reports no longer require either C6 EE or the SV Advanced Report Output Templates, they now only require Clarion 6. See the new Editable Report Example for the optional code to allow the use of editable reports without the SV templates.
• Editable reports now start hidden and only display when complete (if the template setting to display the document is turned on).
• Note: The RecentFiles class and other new base class method have very rudimentary document and will be fully documented in the next release. The RecentFiles class usage is demonstrated in the main OffDemo.app example application on the Word_Main window (procedure)

Version 2.11 : (08 December 2006)

• New classes (to be documented and functional in the next release): RecentFile, RecentFiles
• New Data type (to be documented and functional in the next release): RecentFilesType
• Completely rewritten documentation for the Outlook class. Every single method, property, data type and equate have been documented. Quickstart sections showing how the objects work have been added, along with improved formatting and clarity. Every method has all parameters, the return values, related class properties, data types and equates listed, along with an actual example of its use. In addition every method now has a See Also section that cross references it with all related methods.

Version 2.10 : (17 November 2006)

• Added support for spell checking RTF text boxes and RTF controls populated using the RTF template in both ABC and Legacy for Clarion 6.
• Added Clarion 5.5 RTF Spell Checking control template. In order to add spell checking to a Clarion 5.5 RTF control populate the 'Office Inside Spell Check for C55 RTF' spell checking control template onto the window for each RTF control that needs spell checking. This adds a "check spelling" button which then checks the spelling of the control. This is necessary simply because of the design of the C55 RTF control and class. See the section on C55 RTF Controls.
• Added support for FileExplorer and Office Inside on the same window and the same thread. There is now a "Activate compatibility with File Explorer" on the local extension of the Office Inside object. Tick this box only if you are using Office Inside on the same procedure as FileExplorer. If you are calling the Init method manually the you need to set the oiOffice.noComInit property of the object to 1 before calling the Init() method.
• Changes to the manner in which Office Inside is initialised to allowing another object or control outside of Office Inside to initialise COM. This allows the above feature of compatibility with File Explorer, but also allows the use of Office Inside with other COM objects that need to initialise the COM interface themselves.
• Add the first set of changes to the documentation. All objects, method, properties, data types etc. will be fully documented and the existing documentation enhanced to provide better examples, as well as better explanations of the method, their parameters, return types, requirements etc.
• Fixed: Spell check template used the an embed for alertkeys in Legacy that did not work in some instances. Simplified the code to use a single embed for both ABC and Legacy. Thanks to Jorge Alejandro Lavera for not only reporting this, but suggesting the solution too.

Version 2.01 : (30 August 2006)

• Added support for Text Boxes on Editable Word and Excel reports.
• Updated documentation for oiOutlook.GetMailFoldersQ

Version 2.00 : (18 August 2006)

• Fixed the oiOutlook. GetMailFoldersQ method to return all folders, not just the outbox
• oiOutlook.GetMailFoldersQ now recurses through as many levels as there are folders, rather than being limited to four levels.
• oiOutlook.GetMailFoldersQ has a new optional parameter that allows all folders to be retrieved, including non mail folders such as Contacts, Tasks etc.
• Minor documentation updates.

For versions prior to 2.00 please see the Old Version History document.
